vertical aligned fields
This block is part of the group and was last modified in core v13.0.6.
Fields Selection Required
This block relies on fields that you selected to perform its data actions. You must manually select the fields you want to use in your flow using the fields selector modal. To access the modal, click the white button on the block.
Field Selection Required
This block requires field selection (in). You must manually select the fields you want to work with using the field selector modal. To access the modal, click the white button on the block.
vertical aligned fields v13.0.1 Updated v13.0.6Shows the given fields vertical aligned
- data required
objectThe data the fields will read from.
- hide empty
conditionIf `true` given, we will automatically hide all empty fields.
- key class
uiclassThe class applied to the key view.
- field class
uiclassThe class applied to the field view.
- class
uiclassAssigns a CSS class to the element. • Hidden when unused
- style
uistyleApplies inline CSS style to the element • Hidden when unused
- attributes
uiattributesAdds custom attributes to the element. • Hidden when unused
- state
stateReturns the element to the frontend state.

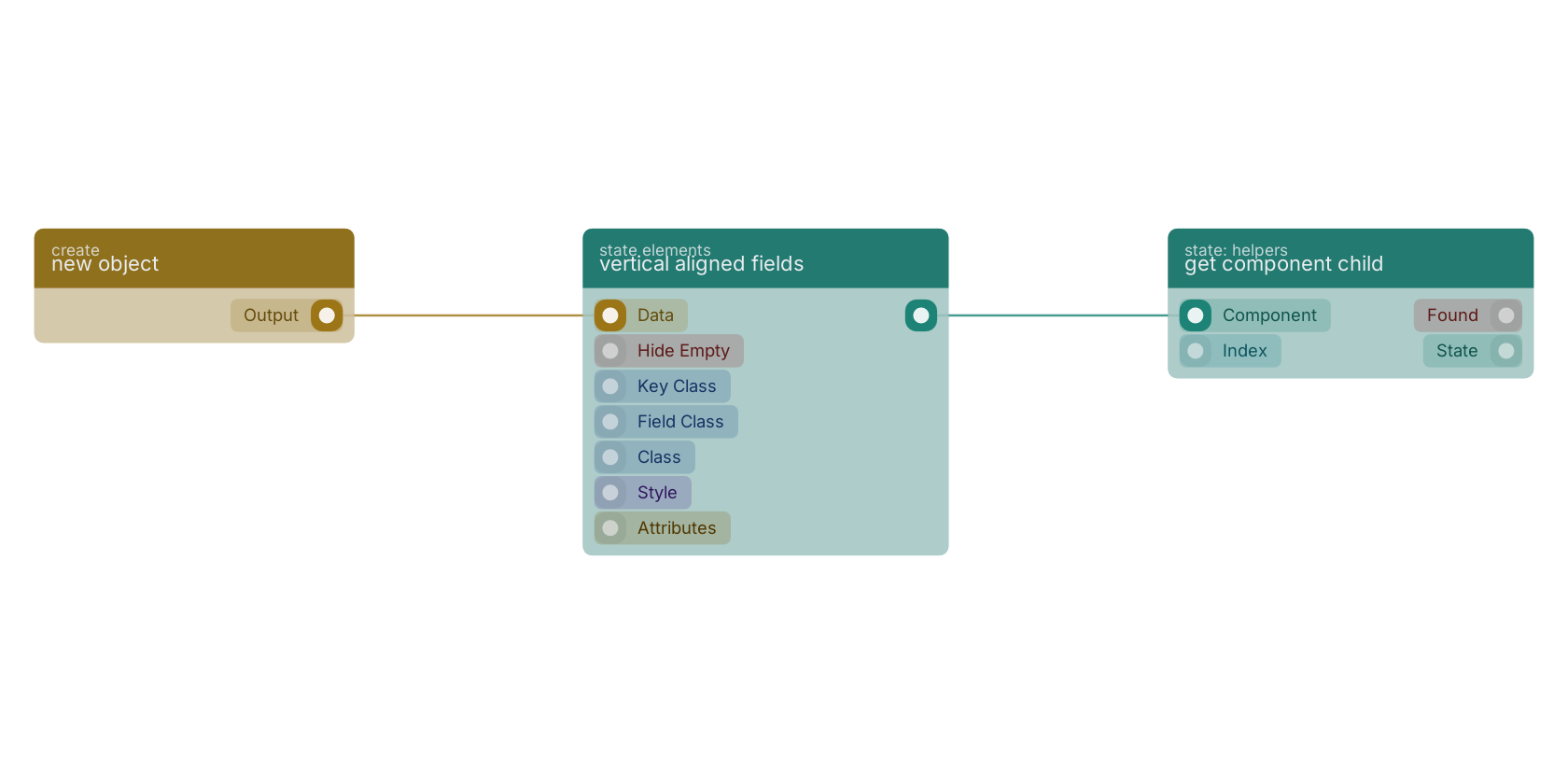

A typical wiring for vertical aligned fields: new object feeds the object pin; the state out pin feeds get component child.
Version history
Introduced in v13.0.1.
Last modified in v13.0.6.
