on change

This block is part of the group and was last modified in core v13.0.6.

on change v13.0.1 Updated v13.0.6

Triggers given callback when the state key changes in the UI. This can be used to see button clicks or inputs being changed.

In pins 2
  • state key required
    value
  • callback required
    inpinfunction
Out pins 1
  • state
    state

    Returns the element to the frontend state.

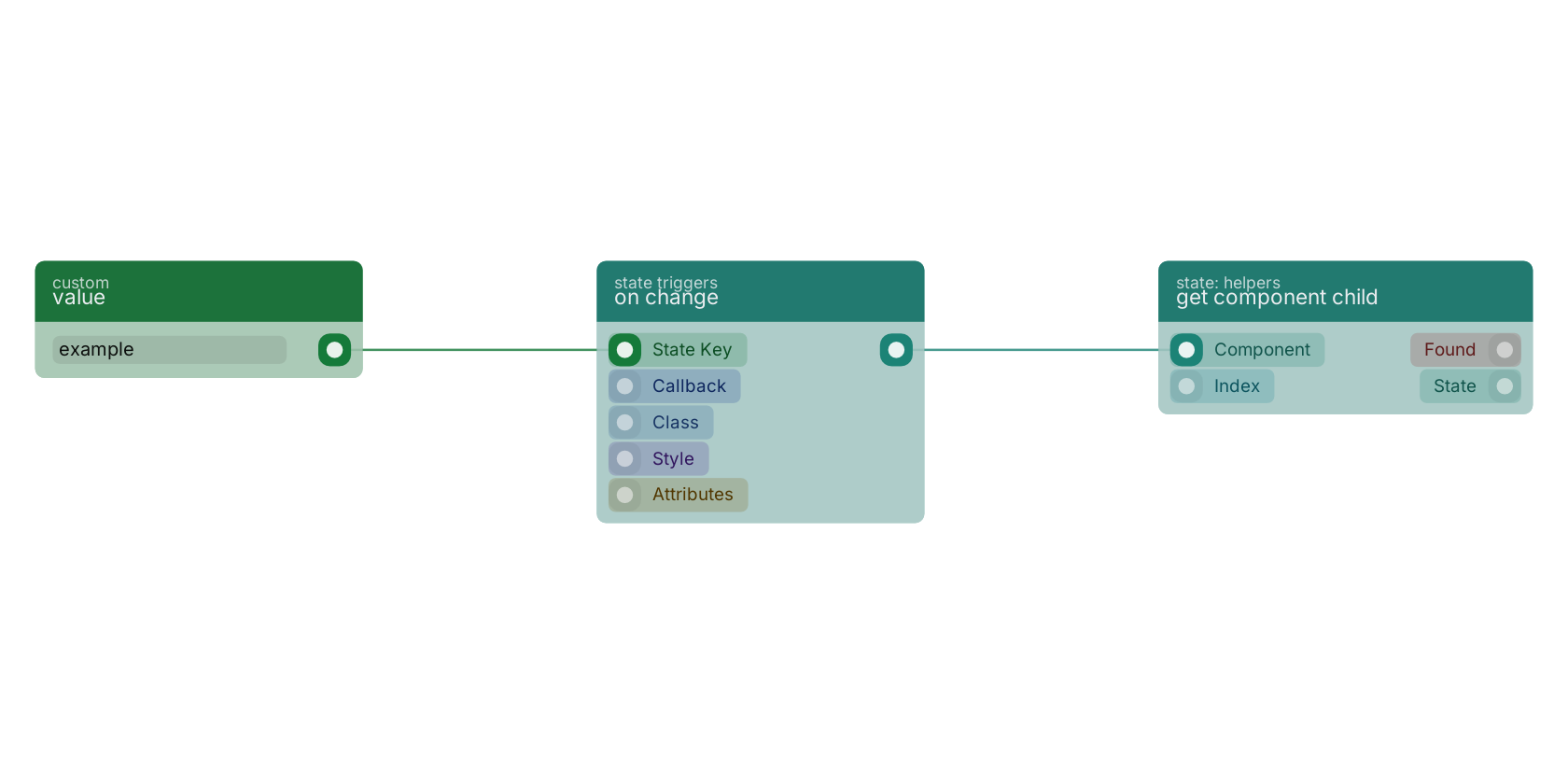

A typical wiring for on change: value feeds the state pin; the state out pin feeds get component child.

Studio canvas example for the on change block: typical wiring for on change.

Version history

Introduced in v13.0.1.

Last modified in v13.0.6.
