Deprecated: use the web blocks for new pages This block belongs to state pages and UI components. Existing pages keep running, but new pages should use the web blocks. See Web Pages and the migration guide.

get uploaded file

This block is part of the state ui group and was last modified in core v10.4.28.

Field Selection Required

This block relies on a field that you select to perform its data actions. You must manually select the field you want to use in your flow using the field selector modal. To access the modal, click the white button on the block.

get uploaded file v10.4.28

Get a recently uploaded file. The file is stored on a temp. dir, move it if you want to keep it.

In pins 1 + flow
  • flow
  • form id value

    A unique ID for the form. Used to retrieve the file

Out pins 4 + flow
  • flow
  • file file

    File succesfully uploaded

  • success condition

    Returns true if a file was found.

  • filename value

    Original file name given when uploaded

  • mimetype value

    Original file mimetype given when uploaded

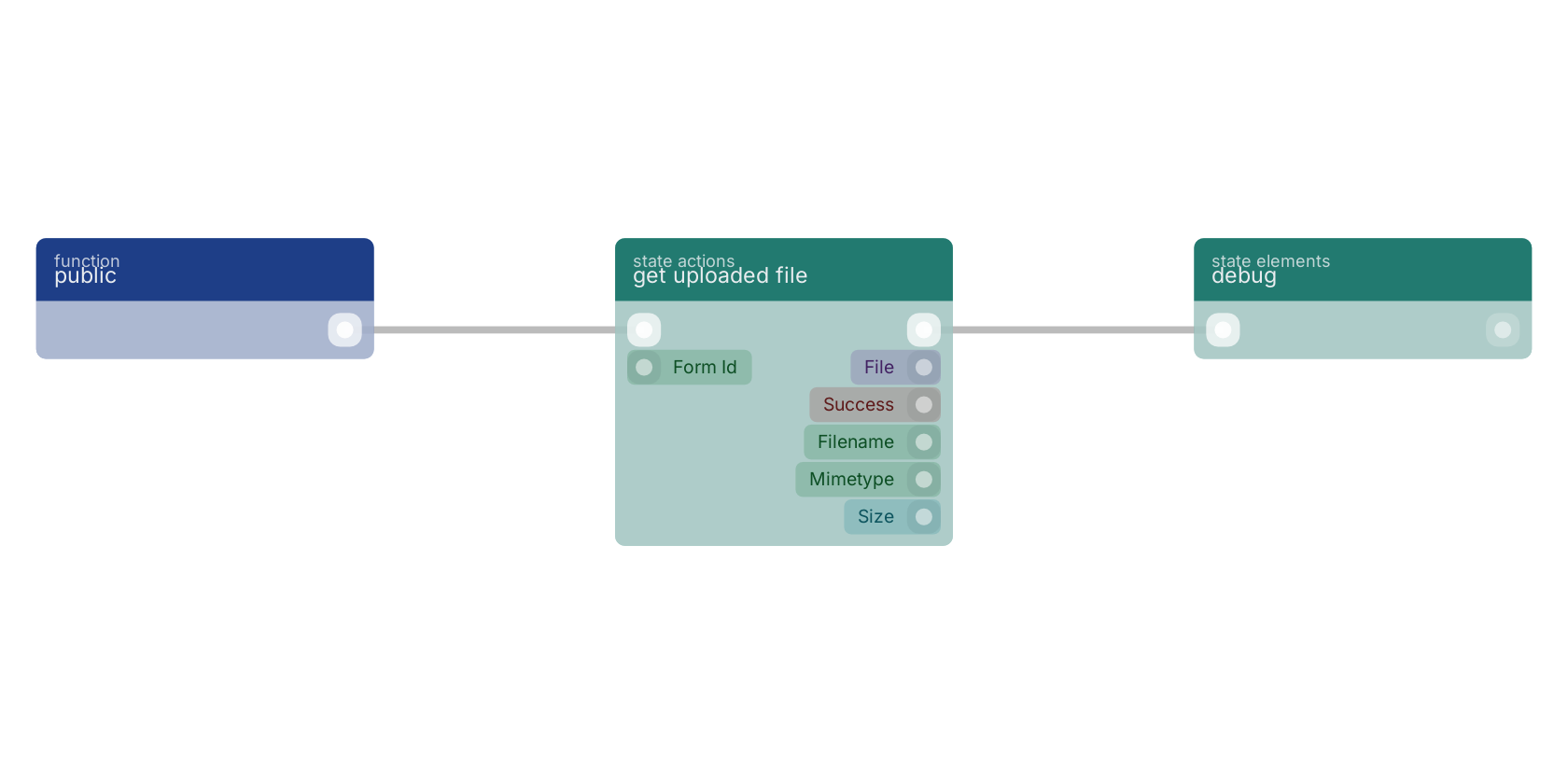

A typical wiring for get uploaded file: a function trigger starts the flow; the flow out pin feeds debug.

Studio canvas example for the get uploaded file block: typical wiring for get uploaded file.

Used in these guides

These documentation pages use or explain this block:

Version history

Introduced in v10.4.28.
