checkbox

This block is part of the state ui group and was last modified in core v13.0.6.

Connection Type

This block connects from a statedatatableconnection type block. Make sure to connect this block to the appropriate left-hand side connection.

checkbox v13.0.1 Updated v13.0.6

Adds a checkbox that can be placed anywhere in the row.

In pins 10
  • value
    value

    The value that will be set in the selection. It is possible to use {{ guid }} in the value to insert the guid of the row being rendered.

    Default guid

  • add check all v13.0.6
    condition

    Will add a multi select checkbox to the datatable if set to true.

    Default false

  • column class
    uiclass

    Hidden when unused

  • column style
    uistyle

    Hidden when unused

  • column attributes
    uiattributes

    Hidden when unused

  • checkbox class
    uiclass

    Hidden when unused

  • checkbox style
    uistyle

    Hidden when unused

  • checkbox attributes
    uiattributes

    Hidden when unused

  • add before
    fielddefinitions

    Adds the checkbox before the given column. • Hidden when other fields are filled

  • add after
    fielddefinitions

    Adds the checkbox after the given column. • Hidden when other fields are filled

Out pins 1
  • statedatatableconnection
    statedatatableconnection

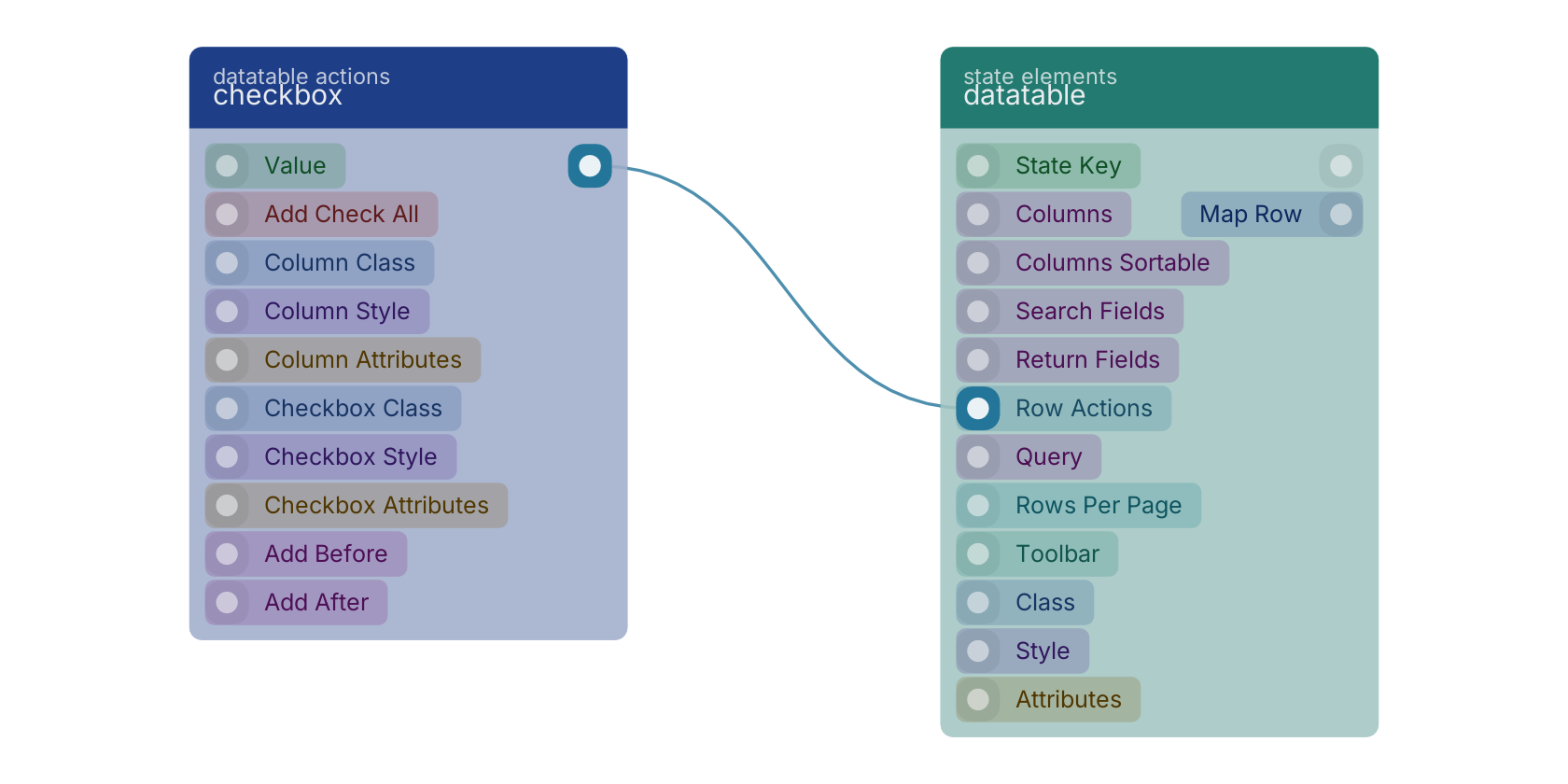

A typical wiring for checkbox: the statedatatableconnection out pin feeds datatable.

Studio canvas example for the checkbox block: typical wiring for checkbox.

Version history

Introduced in v13.0.1.

Last modified in v13.0.6.
