matchall
This block is part of the value group and was last modified in core v10.6.2.
matchall v10.6.2 - text required
valueText to search in.
- expression required
valueThe expression without flags.
- global
conditionCollect every match. When off, only the first match is returned.
- insensitive
conditionMakes the whole expression case-insensitive.
- multline
conditionBeginnen/end anchors will match the start/end of a line.
- success
condition - matches
array
Runs a JS-flavored regex (lookbehind and backreferences supported) against text; matches is an array where EACH element is itself an array: index 0 the full match, then one entry per capture group (unmatched groups become ""). success is true only when at least one match exists; an invalid pattern outputs success=false and an empty array without failing. global=false stops after the FIRST match; flags come from the insensitive/multline pins, not from the expression.

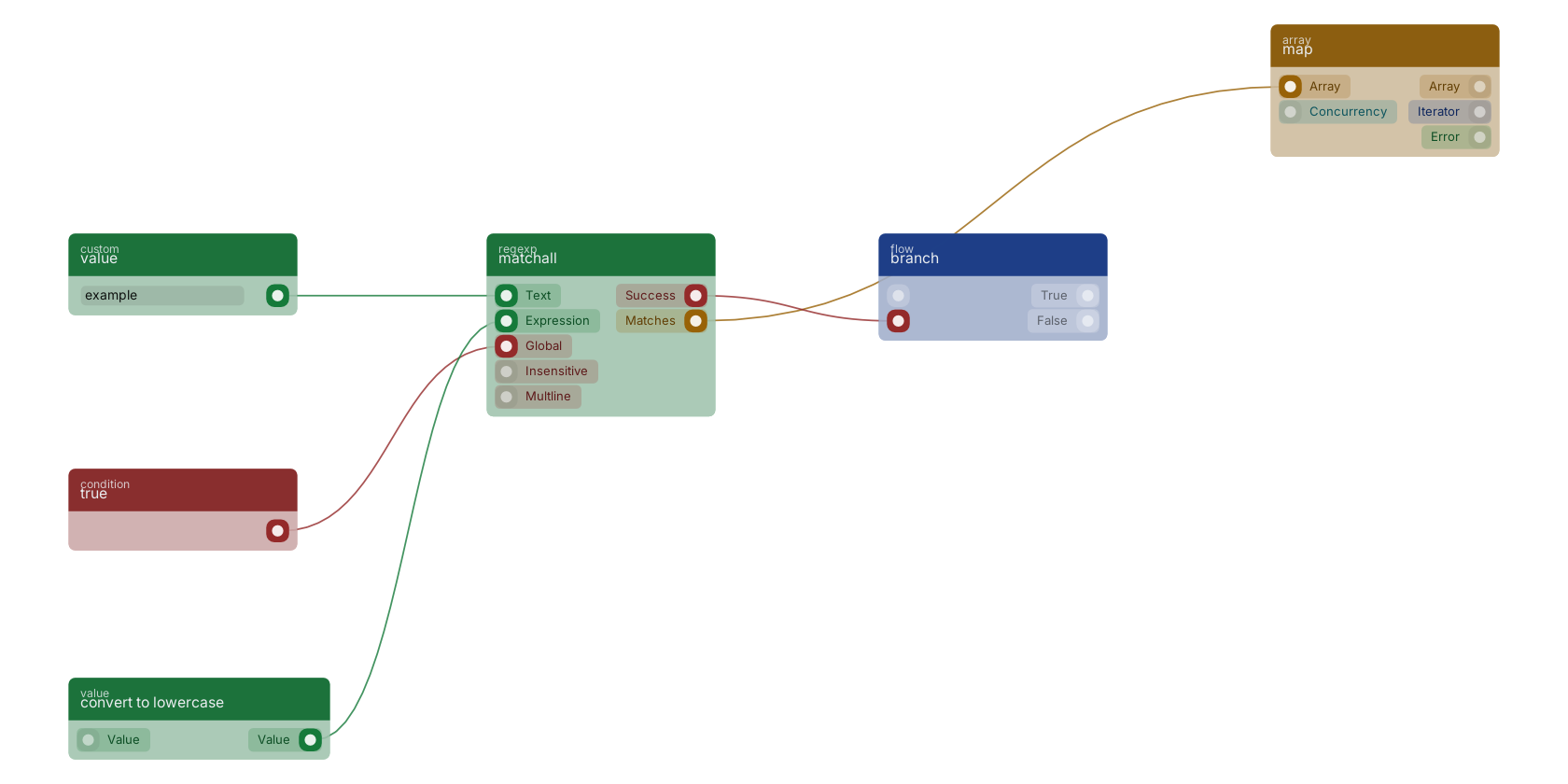

A typical wiring for matchall: value feeds the text pin; true feeds the global pin; convert to lowercase feeds the expression pin; the matches out pin feeds map; the success out pin feeds branch.
Commonly used with
In production blueprints, this block is most often wired together with:
- value: feeds into this block. Simply returns the provided value.
- map: this block feeds into it. Creates a new array with the results of the provided function on every element in the array.
- branch: this block feeds into it.
- AND: this block feeds into it. operator for a set of boolean operands will be true if and only if all the operands are true.
- true: feeds into this block. Gives the condition true hard-coded.
- if: this block feeds into it. use mutations X or Y based on a condition.
Version history
Introduced in v10.6.2.
