convert to lowercase

This block is part of the value group and was last modified in core v10.4.28.

convert to lowercase v10.4.28

In pins 1
  • Value required
    value
Out pins 1
  • Value
    value

Lowercases the input ONLY when it is a string (Unicode-aware); any non-string input -- numbers, arrays, objects -- passes through completely UNCHANGED, with no coercion to string.

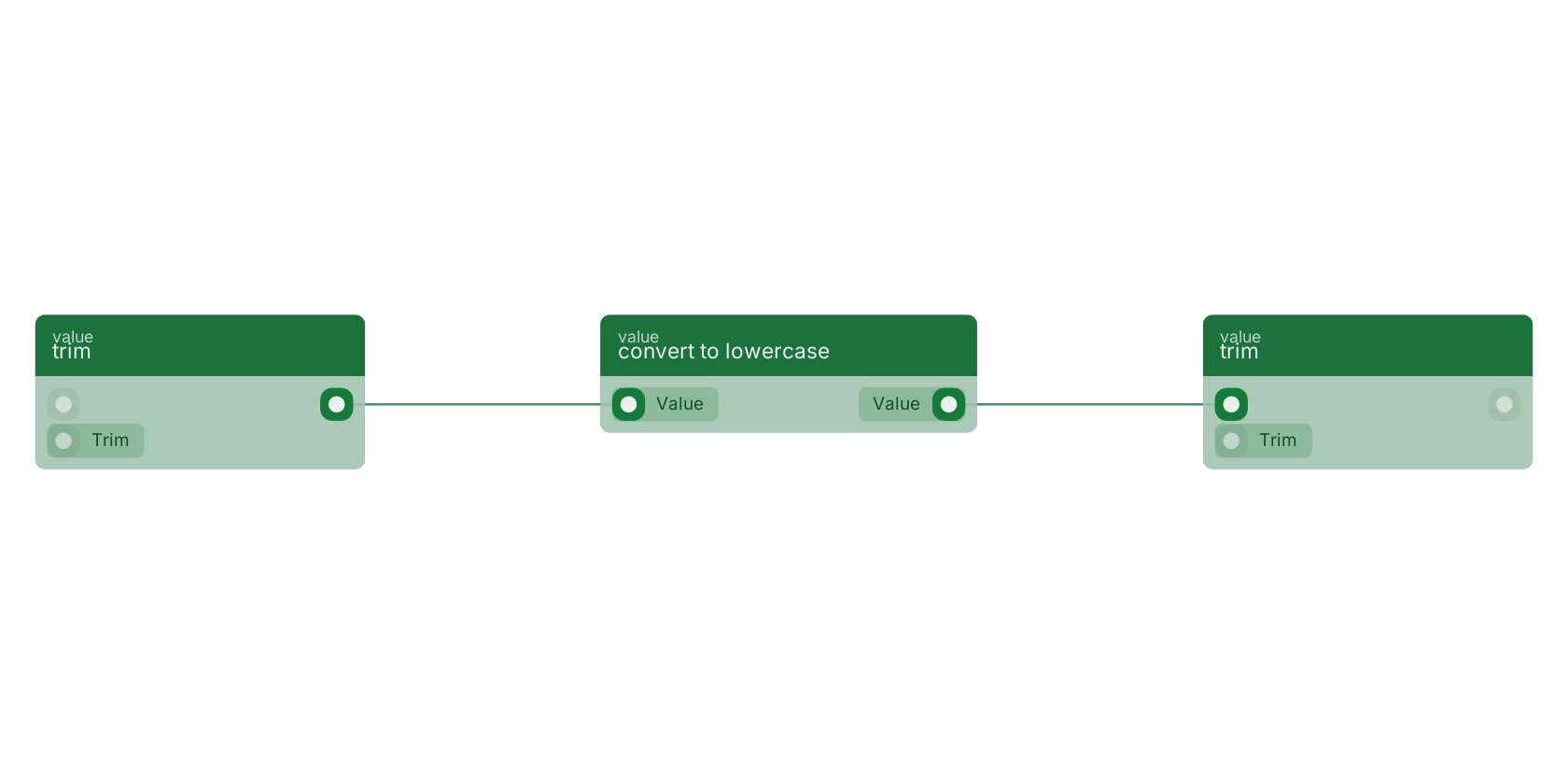

A typical wiring for convert to lowercase: trim feeds the value pin; the value out pin feeds trim.

Studio canvas example for the convert to lowercase block: typical wiring for convert to lowercase.

Commonly used with

In production blueprints, this block is most often wired together with:

  • trim: wired in both directions with this block. Removes characters from both ends of a string.
  • get fields: feeds into this block. Gets the selected fields from the given object.
  • fields: this block feeds into it.
  • ==: this block feeds into it. returns true if the two values are equal.
  • set fields: this block feeds into it. Generates an array of mutations based on the given filled fields.
  • remove special chars: feeds into this block. Returns the value with accents stripped. Only combining diacritical marks are removed - punctuation and symbols are kept.

Version history

Introduced in v10.4.28.
