get instance state

This block is part of the virtualisation group and was last modified in core v15.0.0.

get instance state lxdconnection v13.0.9 Updated v15.0.0

Get state of a instance on the LXD server.

In pins 2 + flow

flow
flow
Connection required
lxdconnection
The LXD connection
Instance name required
value
The name of the instance to request the state for.

Out pins 11 + flow

flow
flow
Connection
lxdconnection
The LXD connection
Success
condition
If successful, this pin returns true.
Status
value
The current status of the instance..
CPU Usage
object
The current CPU usage of the instance.
Disk Usage
object
The current disk usage of the instance.
Memory Usage
object
The current memory usage of the instance.
Network state
object
The current network state of the instance.
Processes Running
number
The quantity of processes that are currently running on the instance.
Stats
object
Stats RUAL generated of this state.
Mounts
array
Mounts of the instance.
Error
value
Error message if the instance state could not be requested.

get instance status

instance status

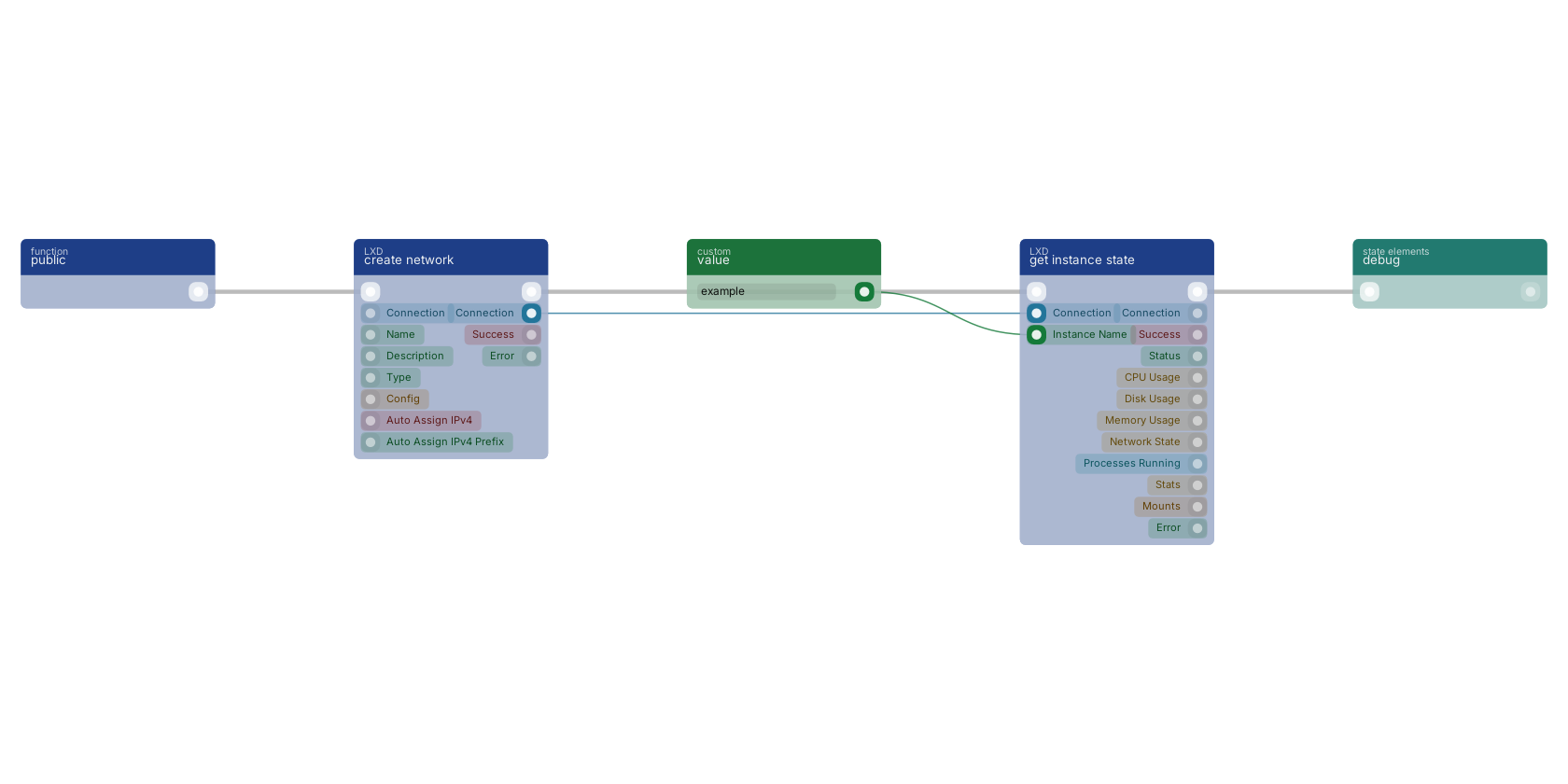

A typical wiring for get instance state: a function trigger starts the flow; create network feeds the connection pin; value feeds the instance_name pin; the flow out pin feeds debug.

Studio canvas example for the get instance state block: typical wiring for get instance state.

Introduced in v13.0.9.

Last modified in v15.0.0.
