create network acl

This block is part of the virtualisation group and was last modified in core v15.0.0.

create network acl lxdconnection v13.0.9 Updated v15.0.0

Creates a network ACL on the LXD server.

In pins 6 + flow

flow
flow
Connection required
lxdconnection
The LXD connection
Name required
value
The name of the network ACL to create.
Description required
value
The description of the network ACL to create.
Config required
array
Array of all the configs to set, has to be array with objects that all have fields key and value.
Ingress rules required
array
Array of all the ingress rules to set, has to be array with objects.
Egress rules required
array
Array of all the ingress rules to set, has to be array with objects.

Out pins 3 + flow

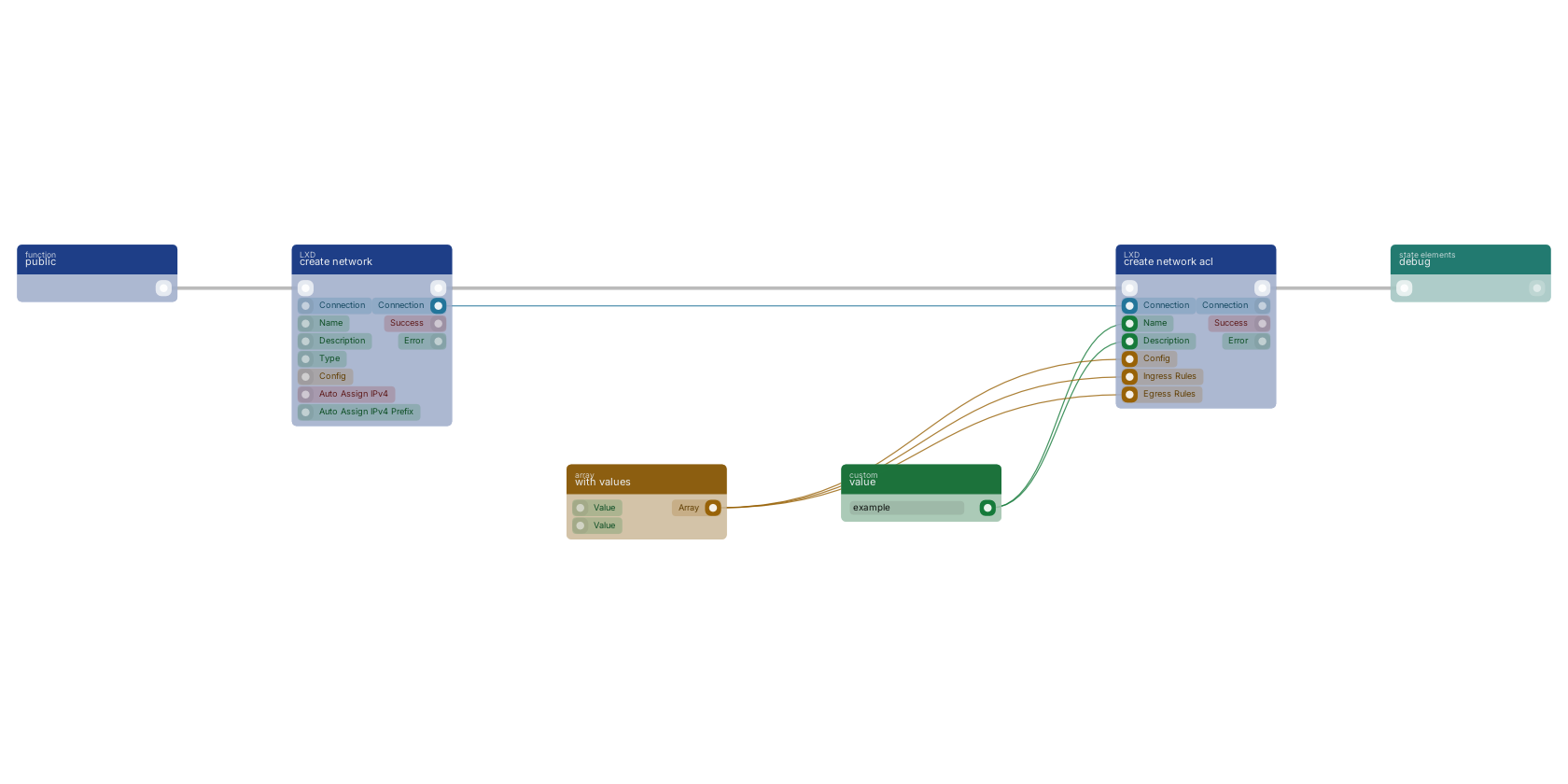

A typical wiring for create network acl: a function trigger starts the flow; create network feeds the connection pin; value feeds the name pin; value feeds the description pin; with values feeds the config pin; with values feeds the ingress_rules pin; with values feeds the egress_rules pin; the flow out pin feeds debug.

Studio canvas example for the create network acl block: typical wiring for create network acl.

Introduced in v13.0.9.

Last modified in v15.0.0.
