get operation state

This block is part of the virtualisation group and was last modified in core v15.0.0.

LXD integration
get operation state v13.0.9 Updated v15.0.0

Retreives all the state of a operation on LXD server.

In pins 3 + flow
  • flow
  • Connection lxdconnection required

    The LXD connection

  • Operation ID value required

    The ID of the operation you want to get info of.

  • Wait condition

    If this is true it will wait with giving response until status is success.

Out pins 8 + flow
  • flow
  • Connection lxdconnection

    The LXD connection

  • Success condition

    If successful, this pin returns true.

  • Data object

    The info of the operation.

  • Status value

    The status of the operation.

  • Location value

    The location of the operation.

  • Description value

    The status of the operation.

  • Created At date

    The date when the operation was created.

  • Error value

    Error message if the operation could not be requested.

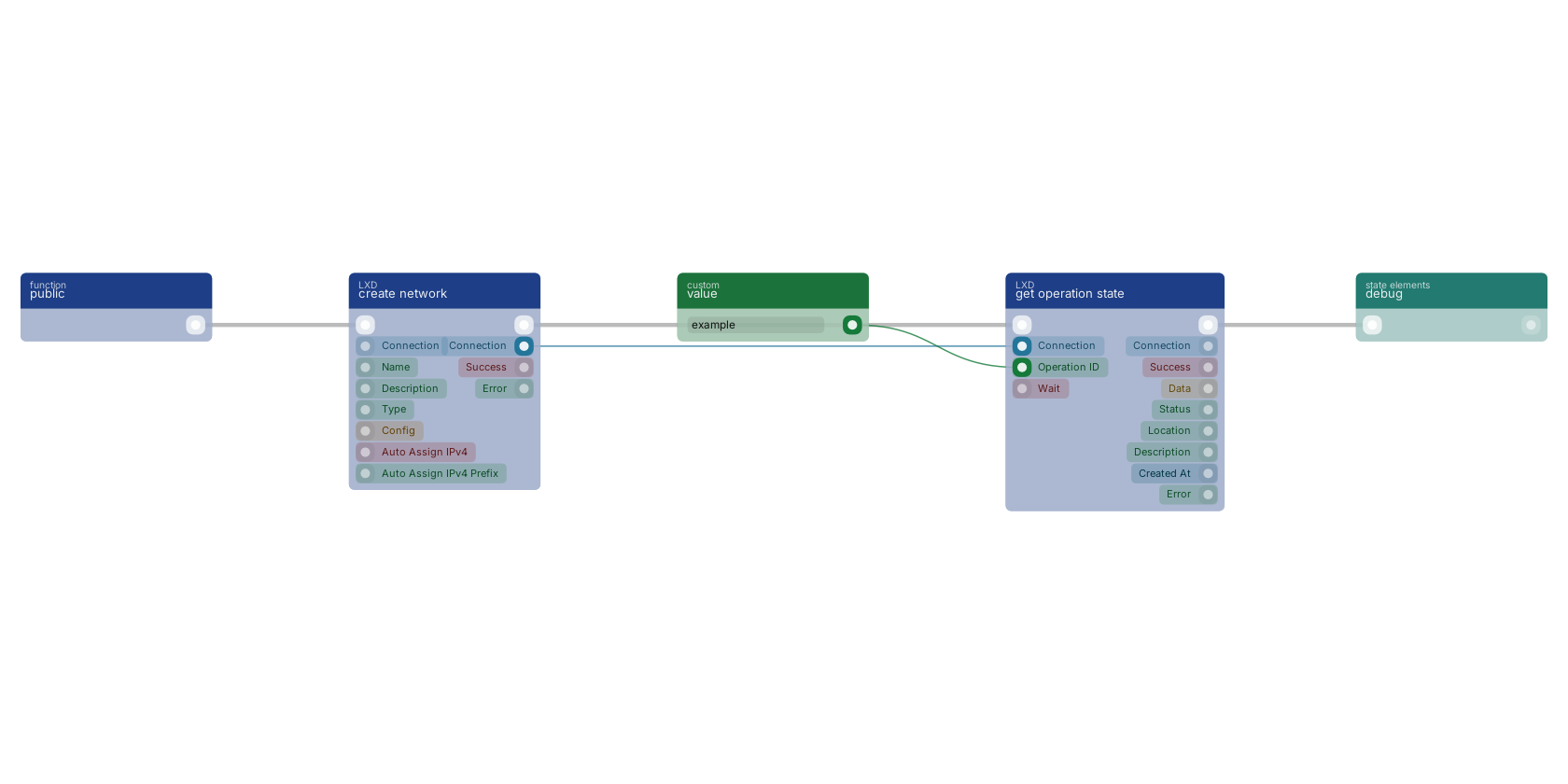

A typical wiring for get operation state: a function trigger starts the flow; create network feeds the connection pin; value feeds the operation_id pin; the flow out pin feeds debug.

Studio canvas example for the get operation state block: typical wiring for get operation state.

Version history

Introduced in v13.0.9.

Last modified in v15.0.0.
