request: get

This block is part of the webhooks group and was last modified in core v15.0.0.

request: get number v12.1.6 Updated v15.0.0

Performs an HTTP GET request to retrieve data from the specified URL. Returns the response as a string value.

In pins 11 + flow

flow
flow
URL required
value
Auth. header
value
Hidden when unused
Query String
object
Hidden when unused
headers
object
Hidden when unused
skip ssl
condition
true will skip SSL verification • Hidden when unused
include token v12.1.6
condition
true will include current users access token in header, to support internal RUAL endpoints requests • Hidden when unused
timeout v14.0.1
number
Overwrites the default timeout. Time in seconds. • Hidden when unused
retry v14.0.4
condition
Enable automatic retry on failure. Uses exponential backoff. • Hidden when unused
Default false
retry count v14.0.4
number
Maximum number of retry attempts. Default is 3. • Hidden when unused
Default 3
retry delay v14.0.4
number
Initial delay between retries in seconds. Uses exponential backoff (delay doubles each retry). • Hidden when unused
Default 1
signing key v15.0.0
value
When set, signs the request with HMAC-SHA256 for RUAL-internal APIs (e.g. the mssgs backend): adds X-Mssgs-Timestamp (Unix seconds) and X-Mssgs-Signature: sha256=<hex> computed over timestamp\nmethod\nrequest URI\nbody. • Hidden when unused

Out pins 3 + flow

request

http get

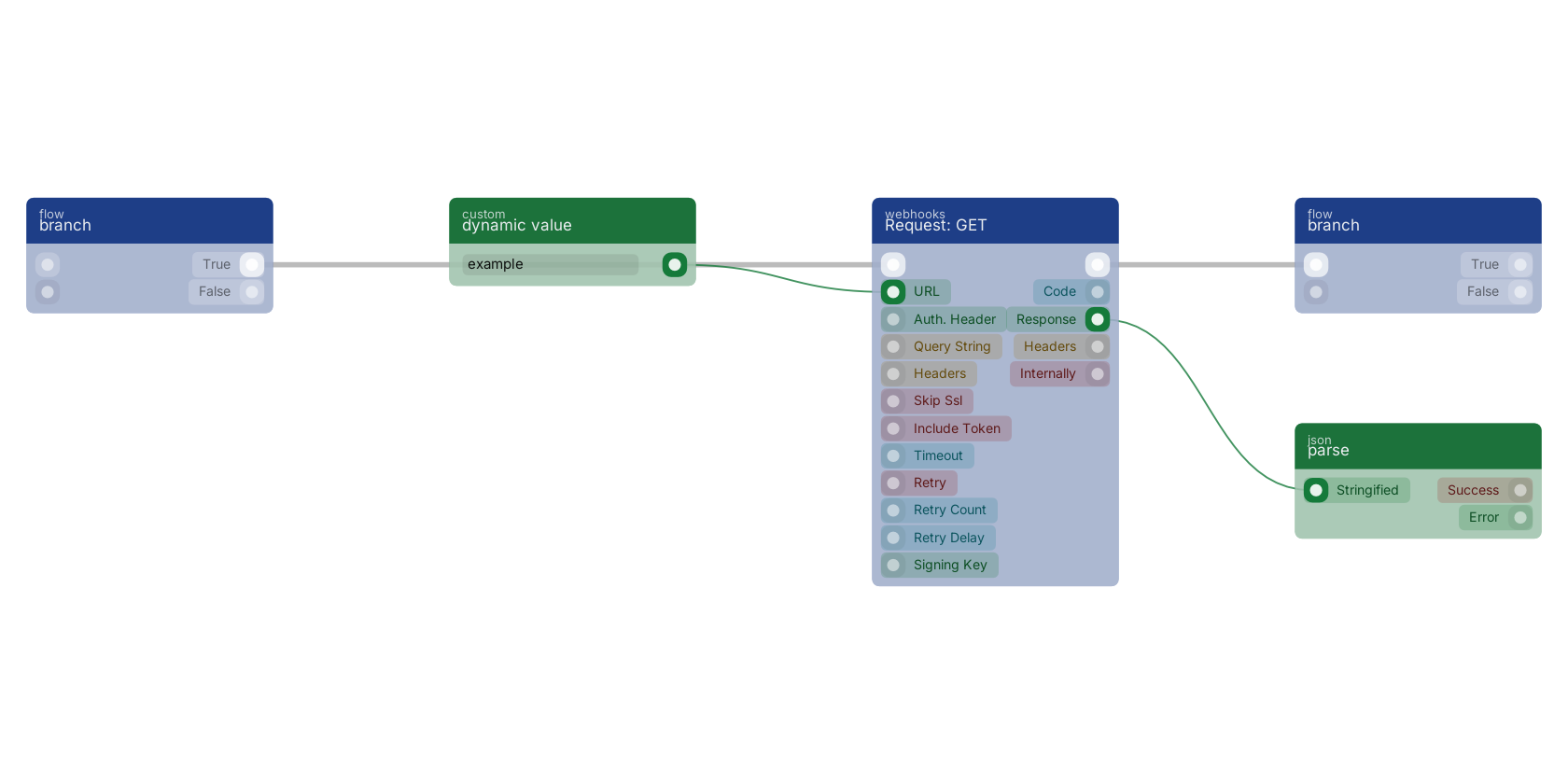

A typical wiring for Request: GET: branch feeds the flow pin; dynamic value feeds the url pin; the response out pin feeds parse; the flow out pin feeds branch.

Studio canvas example for the Request: GET block: typical wiring for Request: GET.

In production blueprints, this block is most often wired together with:

branch: wired in both directions with this block.
parse: this block feeds into it. Converts a JSON in text format to a data structure that can be used inside functions.
===: this block feeds into it. returns true if the two values are equal. Compares any type: numbers by value across int/float, strings and booleans strictly, objects and arrays deeply. There is no string/number coercion, so "1" does not equal 1.
dynamic value: feeds into this block. Returns the provided value with support for dynamic inpins using {name:type} placeholders — the pin's name first, then its type, e.g. {guid:value}.
set: this block feeds into it. Set key to hold the string value. If key already holds a value, it is overwritten, regardless of its type.
reply in JSON: this block feeds into it. Reply to any httpconnection as JSON body.

Introduced in v12.1.6.

Last modified in v15.0.0.

Cluster
