request: get json

This block is part of the webhooks group and was last modified in core v15.0.0.

request: get json number v12.1.6 Updated v15.0.0

Performs an HTTP GET request to retrieve data from the specified URL. Automatically parses the response as JSON.

In pins 11 + flow

flow
flow
URL required
value
Auth. header
value
Hidden when unused
Query String
object
Hidden when unused
headers
object
Hidden when unused
skip ssl
condition
true will skip SSL verification • Hidden when unused
include token v12.1.6
condition
true will include current users access token in header, to support internal RUAL endpoints requests • Hidden when unused
timeout v14.0.1
number
Overwrites the default timeout. Time in seconds. • Hidden when unused
retry v14.0.4
condition
Enable automatic retry on failure. Uses exponential backoff. • Hidden when unused
Default false
retry count v14.0.4
number
Maximum number of retry attempts. Default is 3. • Hidden when unused
Default 3
retry delay v14.0.4
number
Initial delay between retries in seconds. Uses exponential backoff (delay doubles each retry). • Hidden when unused
Default 1
signing key v15.0.0
value
When set, signs the request with HMAC-SHA256 for RUAL-internal APIs (e.g. the mssgs backend): adds X-Mssgs-Timestamp (Unix seconds) and X-Mssgs-Signature: sha256=<hex> computed over timestamp\nmethod\nrequest URI\nbody. • Hidden when unused

Out pins 3 + flow

request

http get json

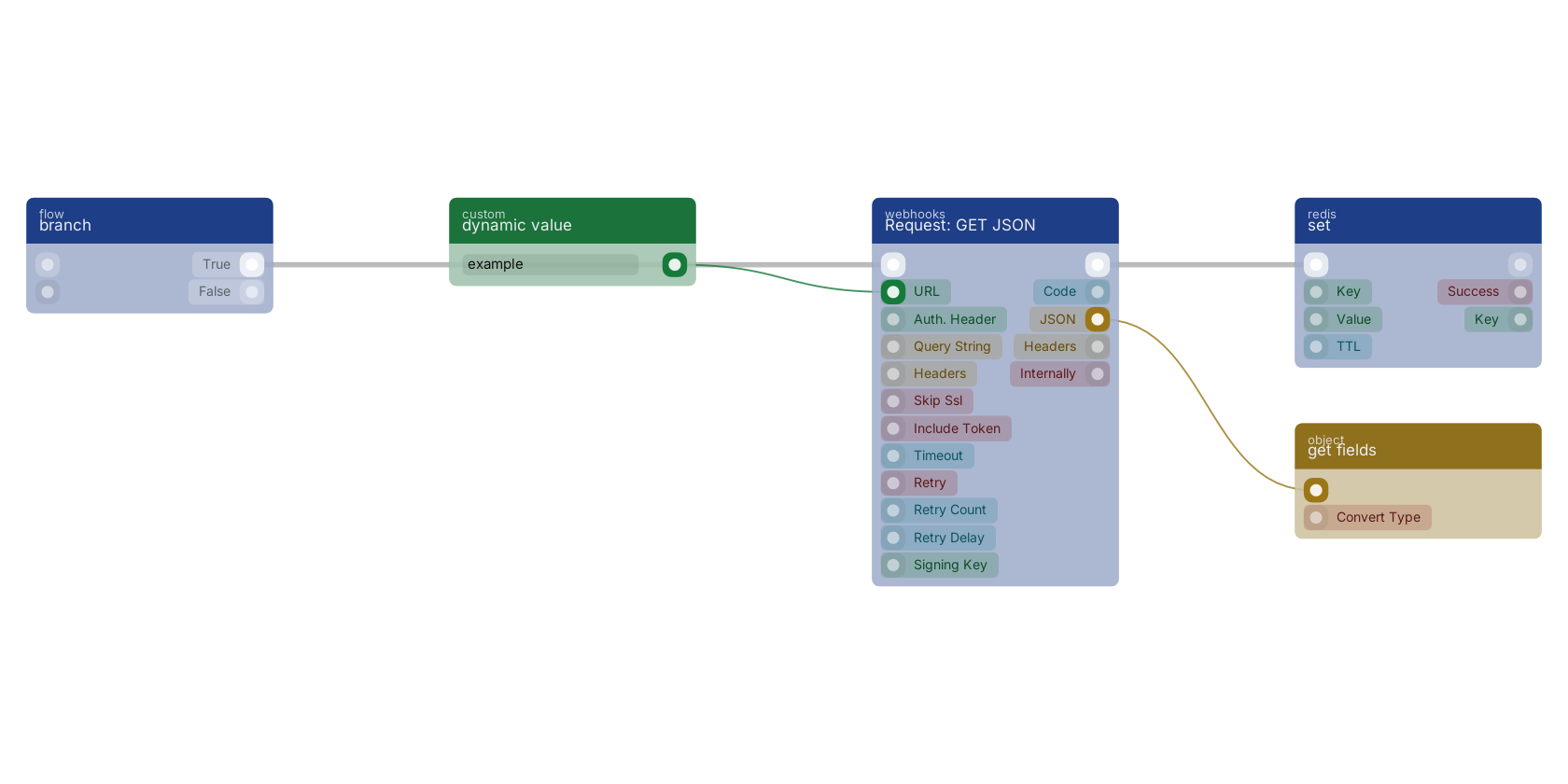

A typical wiring for Request: GET JSON: branch feeds the flow pin; dynamic value feeds the url pin; the flow out pin feeds set; the response out pin feeds get fields.

Studio canvas example for the Request: GET JSON block: typical wiring for Request: GET JSON.

In production blueprints, this block is most often wired together with:

branch: feeds into this block.
set: this block feeds into it. Set key to hold the string value. If key already holds a value, it is overwritten, regardless of its type.
get fields: this block feeds into it. Gets the selected fields from the given object.
dynamic value: feeds into this block. Returns the provided value with support for dynamic inpins using {name:type} placeholders — the pin's name first, then its type, e.g. {guid:value}.

Introduced in v12.1.6.

Last modified in v15.0.0.
