send message

This block is part of the websocket group and was last modified in core v15.0.0.

send message condition v13.0.5 Updated v15.0.0

Send the given payload as JSON to the current websocket

In pins 2 + flow

flow
flow
payload required
object
fields v15.0.0
array<value>
Payload whitelist: dot-paths of the fields the payload may carry. Everything not listed is stripped before writing to the websocket; on an array the whitelist is applied per element. Empty or unconnected sends the payload as-is.

Out pins 2 + flow

flow
flow
success
condition
error
value

Writes the payload to the current WebSocket connection as a {type: "payload", data: ...} message. When fields is wired, only those dot-paths survive : everything else is stripped before sending (per element on arrays). success=false with error MISSING_WEBSOCKET when there is no connection, PRODUCTION_RUN_ONLY in simulation, or the write error when sending fails.

write to spark

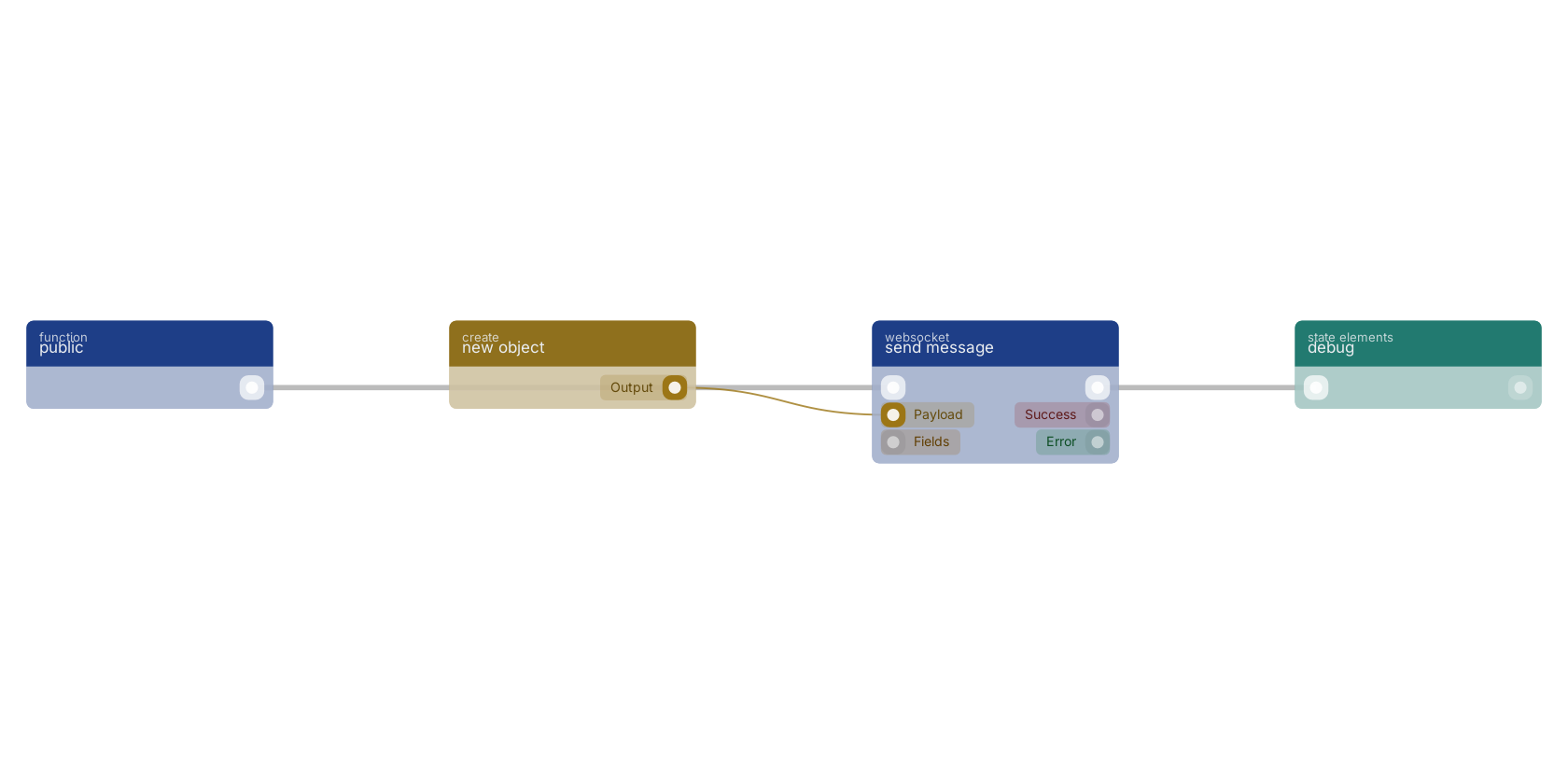

A typical wiring for send message: a function trigger starts the flow; new object feeds the payload pin; the flow out pin feeds debug.

Version history

Introduced in v13.0.5.

Last modified in v15.0.0.
