concat
This block is part of the array group and was last modified in core v10.4.28.
concat v10.4.28 Returns a joined array of two or more arrays.
- array_1 required
arrayThe first array to be concatenated.
- array_2 required
arrayThe second array to be concatenated.
- Array
arrayThe resulting array after concatenation.
Concatenates every connected input pin in pin order into one array: array inputs contribute their elements, and a non-array input is appended as a SINGLE element rather than skipped. Nil inputs are skipped; with no usable inputs the output is an empty array, never null.
multiple |

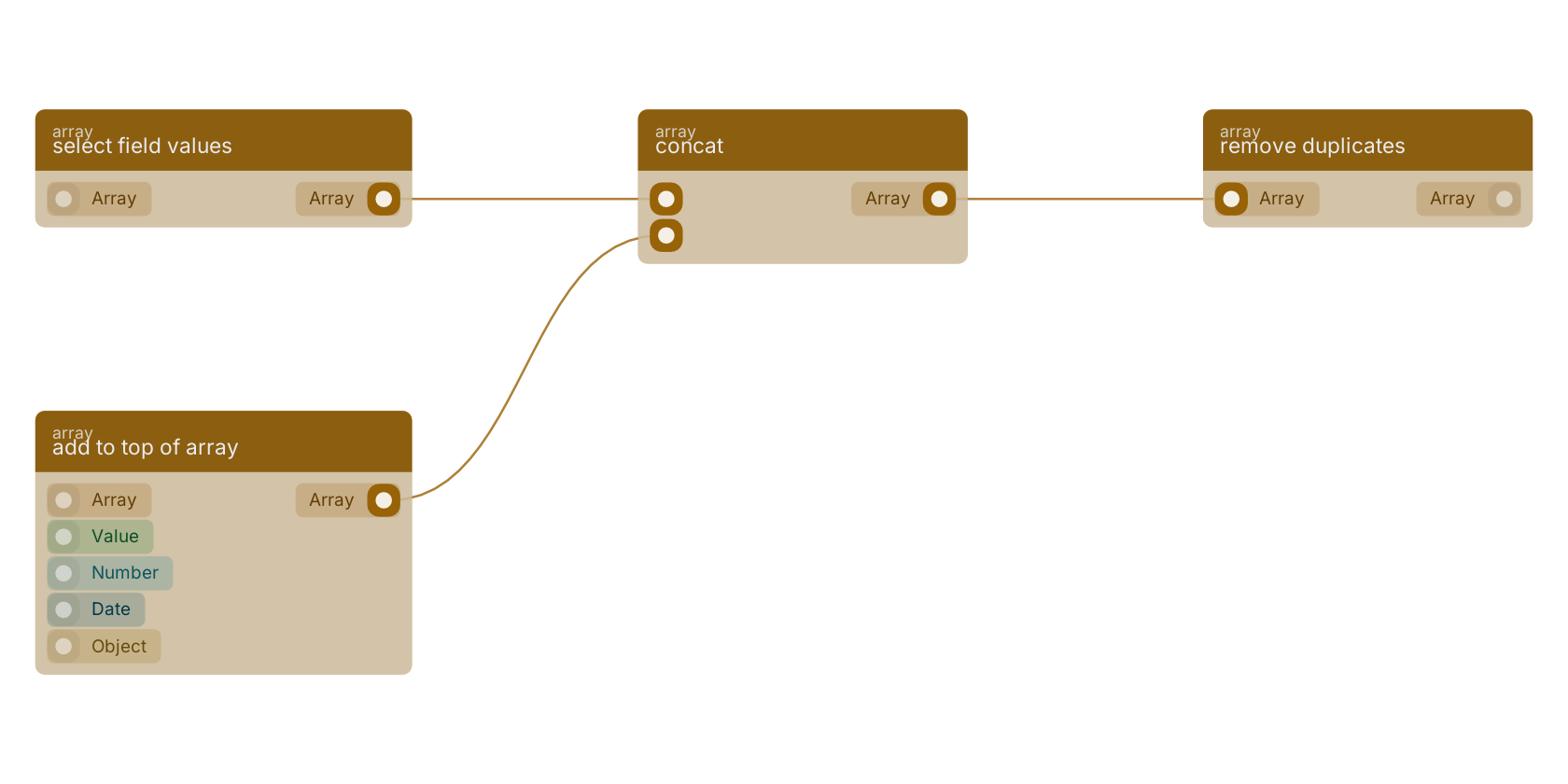

A typical wiring for concat: select field values feeds the array_1 pin; add to top of array feeds the array_2 pin; the array out pin feeds remove duplicates.
Commonly used with
In production blueprints, this block is most often wired together with:
- remove duplicates: wired in both directions with this block. Removes duplicate values from an array.
- select field values: wired in both directions with this block. returns an array with values of the given field in this array of objects.
- add to top of array: feeds into this block. Adds your given value to your given array.
- search: feeds into this block. searches in the given storage based on a query.
- select fields: feeds into this block. Filters all other fields from the objects in this array.
- length: this block feeds into it. Returns the total length of the given array.
Version history
Introduced in v10.4.28.
