match lines for document
This block is part of the array group and was last modified in core v14.0.2.
match lines for document v14.0.2 Returns all matching lines by guid for the given document. The input should contain a _meta.guid which will be returned and an array matches containing { key, value }.
- lines required
arraylines to match. Example:
[{ "_meta": { "guid": "example" }, "matches": [{ "key": "code", "value": "test" }] }] - overwrites required
objectoverwrite lines by guid. Example:
{ "example": [{ "_meta": { "guid": "example_overwrite" }, "matches": [{ "key": "code", "value": "test2" }] }] } - document required
objectthe document to match with. Example:
{ "_meta": { "guid": "example" }, "code": "test" } - only check prefix
valueIf set will only check the given match prefix and return true for all other matches
- matches
array
Outputs the _meta.guid strings of matching lines, NOT the line objects. A line matches when every entry in its matches list holds against the document: the value is split on whitespace and ANY token may equal the document field (string compare; array fields match on any element), value "*" always passes, and with prefixcheck set entries whose key lacks the prefix are skipped. If overwrites contains the line guid, a matching overwrite line contributes its OWN guid instead.

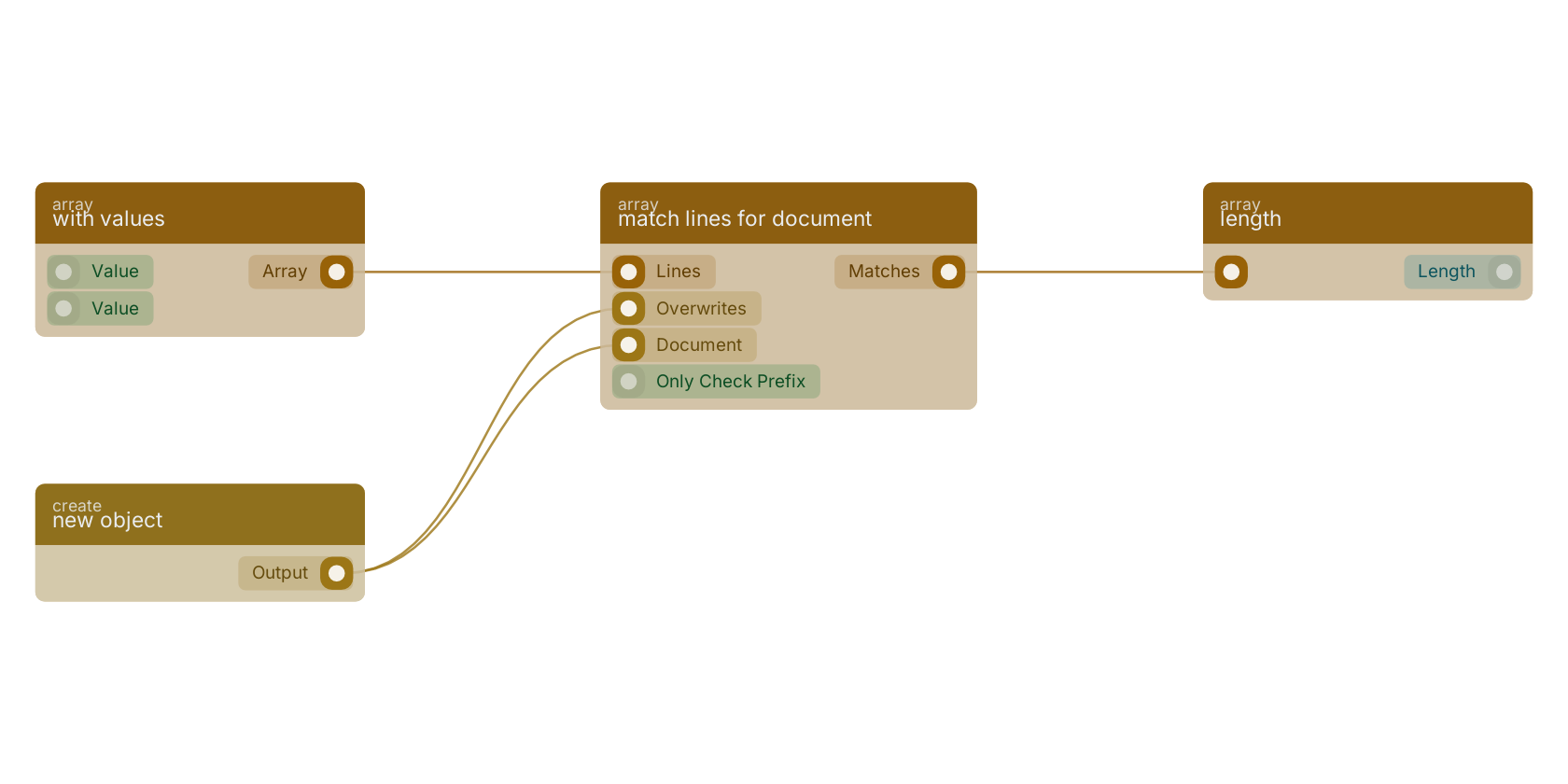

A typical wiring for match lines for document: with values feeds the lines pin; new object feeds the overwrites pin; new object feeds the document pin; the matches out pin feeds length.
Version history
Introduced in v14.0.2.
