objects with fields
This block is part of the array group and was last modified in core v10.4.28.
Fields Selection Required
This block relies on fields that you selected to perform its data actions. You must manually select the fields you want to use in your flow using the fields selector modal. To access the modal, click the white button on the block.
Field Selection Required
This block requires field selection (in). You must manually select the fields you want to work with using the field selector modal. To access the modal, click the white button on the block.
objects with fields v10.4.28 Create multiple objects inside an array
- Output
arrayOutput array with the given objects.
Builds objects from the studio-selected field paths and outputs them in an array: one object by default, plus one per extended pin group (whose input pins repeat each field with an _0, _1, ... suffix). Field values are set at their dot paths; an unwired field is omitted from the object although its parent objects along the path are still created.

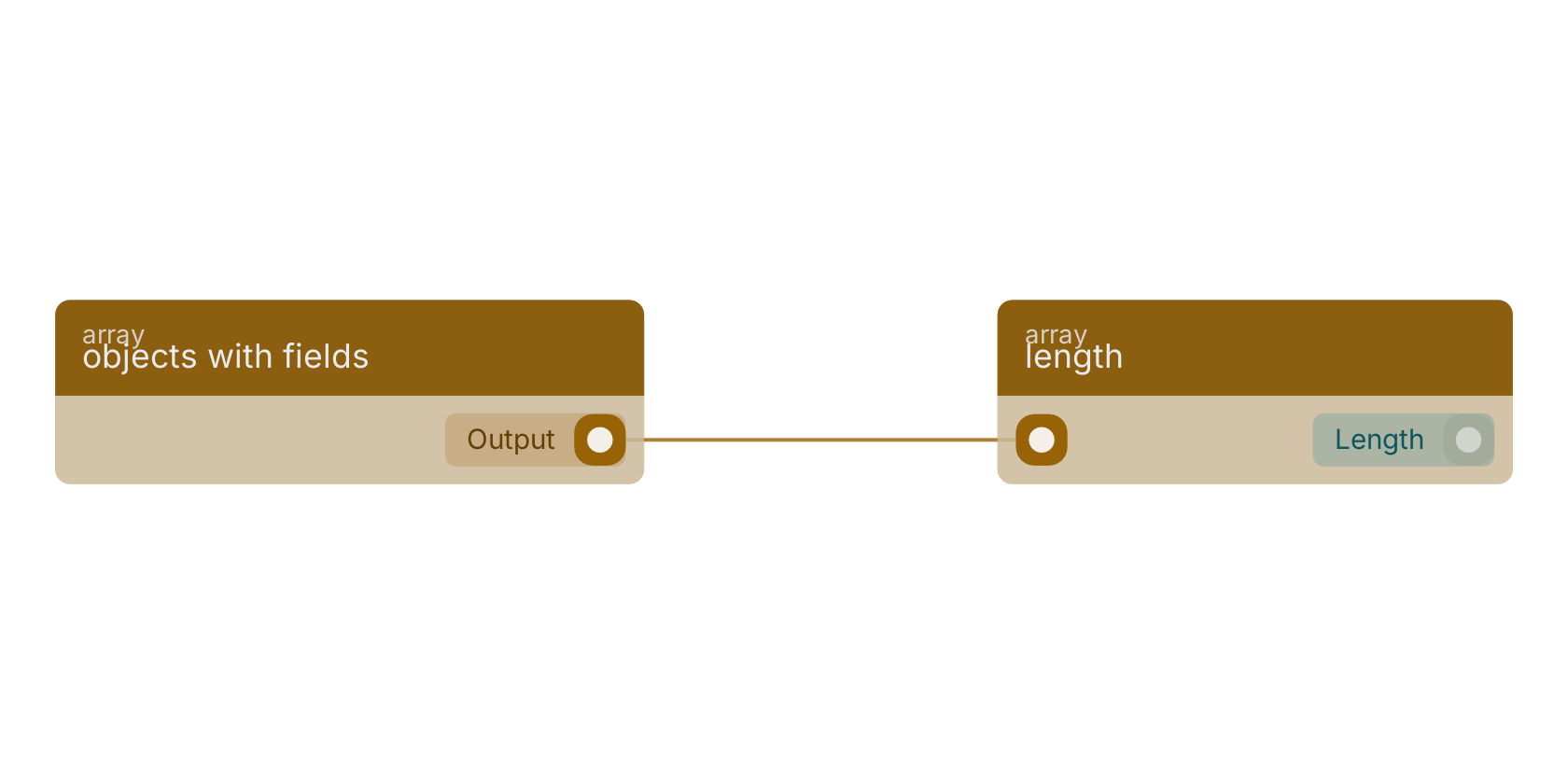

A typical wiring for objects with fields: the array out pin feeds length.
Version history
Introduced in v10.4.28.
