splice
This block is part of the array group and was last modified in core v10.4.28.
splice v10.4.28 Removes an item from your given array.
- array
arrayThe array you want to remove an item from (optional).
- start required
numberThe index at which to start removing items from the array.
- deleteCount
numberThe number of items to remove from the array (optional).
- Array
arrayThe array after removing items.
- Removed items
arrayThe items that were removed from the array.
Removes elements from a COPY of the array starting at zero-based index start: with deleteCount wired it removes that many elements (negative counts as 0); WITHOUT deleteCount it removes everything from start through the end. Outputs the remainder on array and the removed elements on removed_items; the input is not mutated. Negative start clamps to 0 - it does not count from the end - and nothing can be inserted.

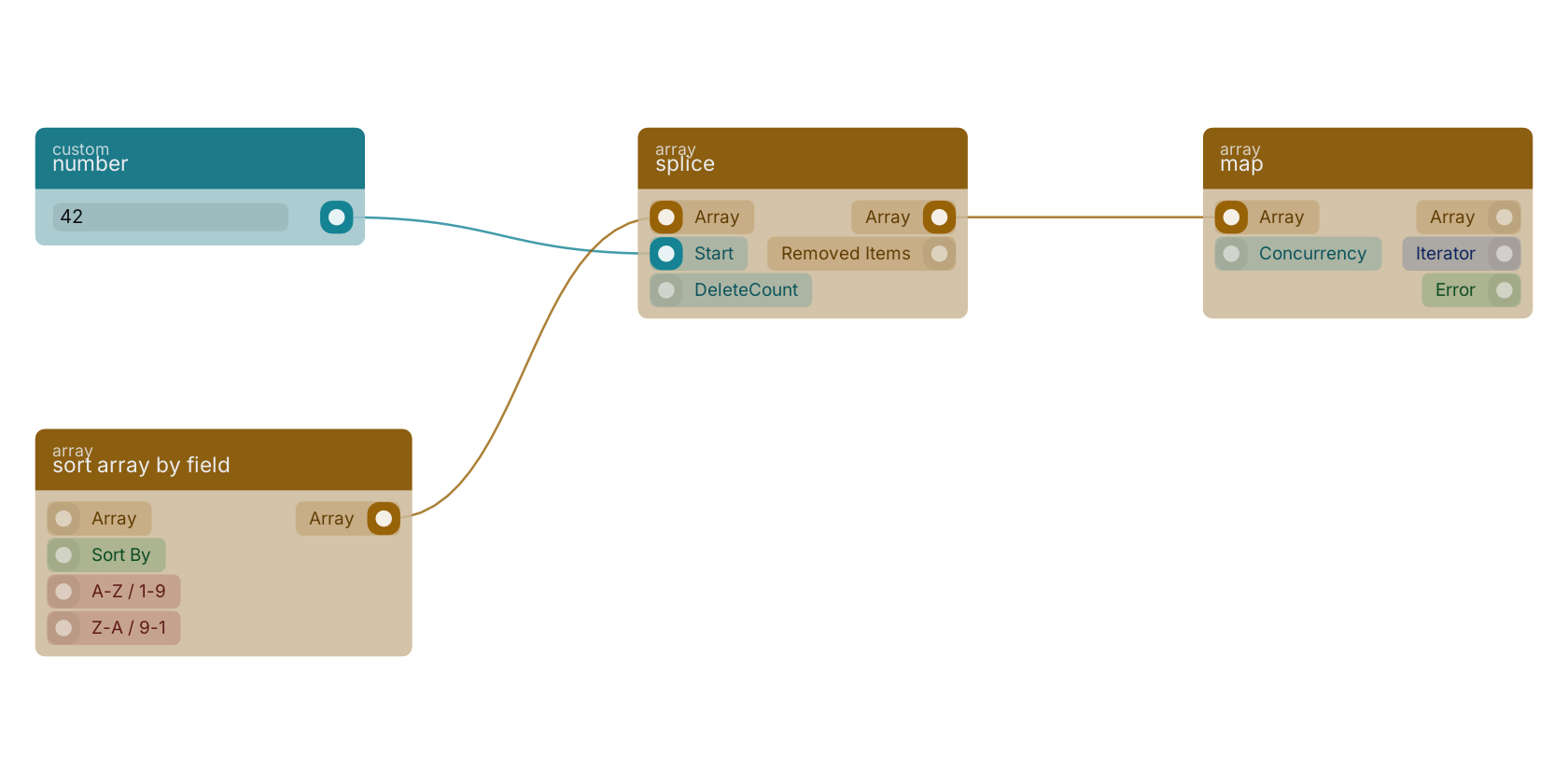

A typical wiring for splice: number feeds the number_1 pin; sort array by field feeds the array pin; the array out pin feeds map.
Commonly used with
In production blueprints, this block is most often wired together with:
- number: feeds into this block. Generates a valid number from the filled custom value in the blueprint.
- map: this block feeds into it. Creates a new array with the results of the provided function on every element in the array.
- sort array by field: feeds into this block. Sorts the elements of an array by a given key.
Version history
Introduced in v10.4.28.
