format number
This block is part of the value group and was last modified in core v10.4.28.
format number v10.4.28 In pins 4
- number required
number - Sep thou required
value - Sep dec required
value - Dec places required
numberHow many decimals to round to. Left unwired this block uses 2; the maximum is 100
Out pins 1
- value
value
Formats a number as a string with EUROPEAN defaults: thousand separator ".", decimal separator ",", ROUNDED to dec_places decimals (default 2, capped at 100). dec_places of 0 omits the decimal separator entirely; large values keep full precision via arbitrary-precision parsing; unparseable input formats as 0. Example: 1234567.891 -> "1.234.567,89".

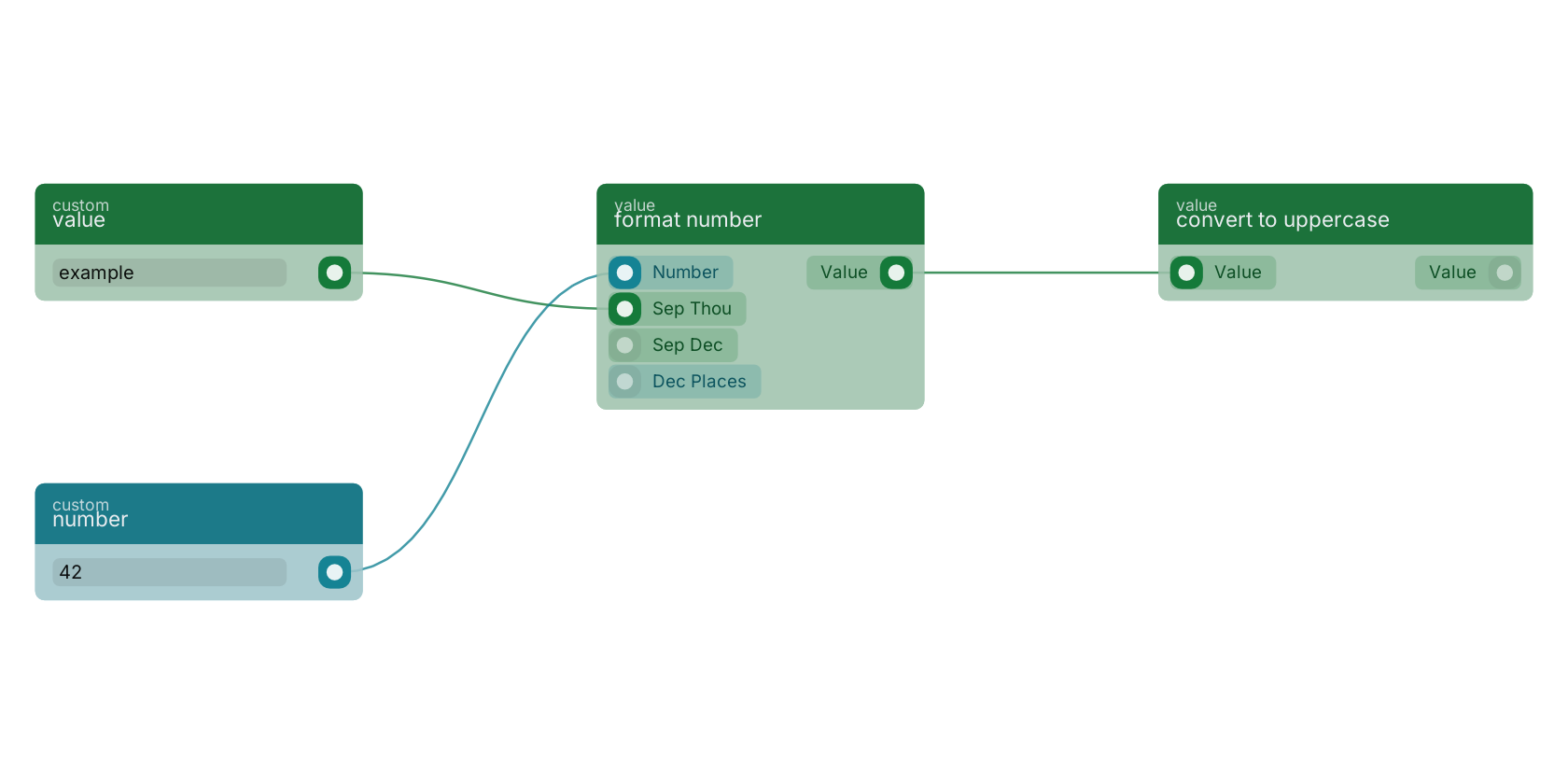

A typical wiring for format number: value feeds the sep_thou pin; number feeds the number pin; the value out pin feeds convert to uppercase.
Commonly used with
In production blueprints, this block is most often wired together with:
- value: feeds into this block. Simply returns the provided value.
- number: feeds into this block. Generates a valid number from the filled custom value in the blueprint.
- get fields: feeds into this block. Gets the selected fields from the given object.
- new object: this block feeds into it. Builds a new object filled with the given fields.
Version history
Introduced in v10.4.28.
