if
This block is part of the array group and was last modified in core v10.4.28.
if v10.4.28 Conditional branching for arrays (if.. then.. else..).
- true required
arrayInput pin for the "true" branch array.
- false required
arrayInput pin for the "false" branch array.
- boolean required
conditionInput pin for the boolean condition.
- array
arrayOutput pin for the resulting array based on the condition.
Selects between the two array inputs: outputs the then input when the condition pin resolves to strict boolean true, otherwise the else input. Any non-true value (including truthy non-booleans) falls to else. If the selected input is not an array, outputs an empty array.
branch |
condition |

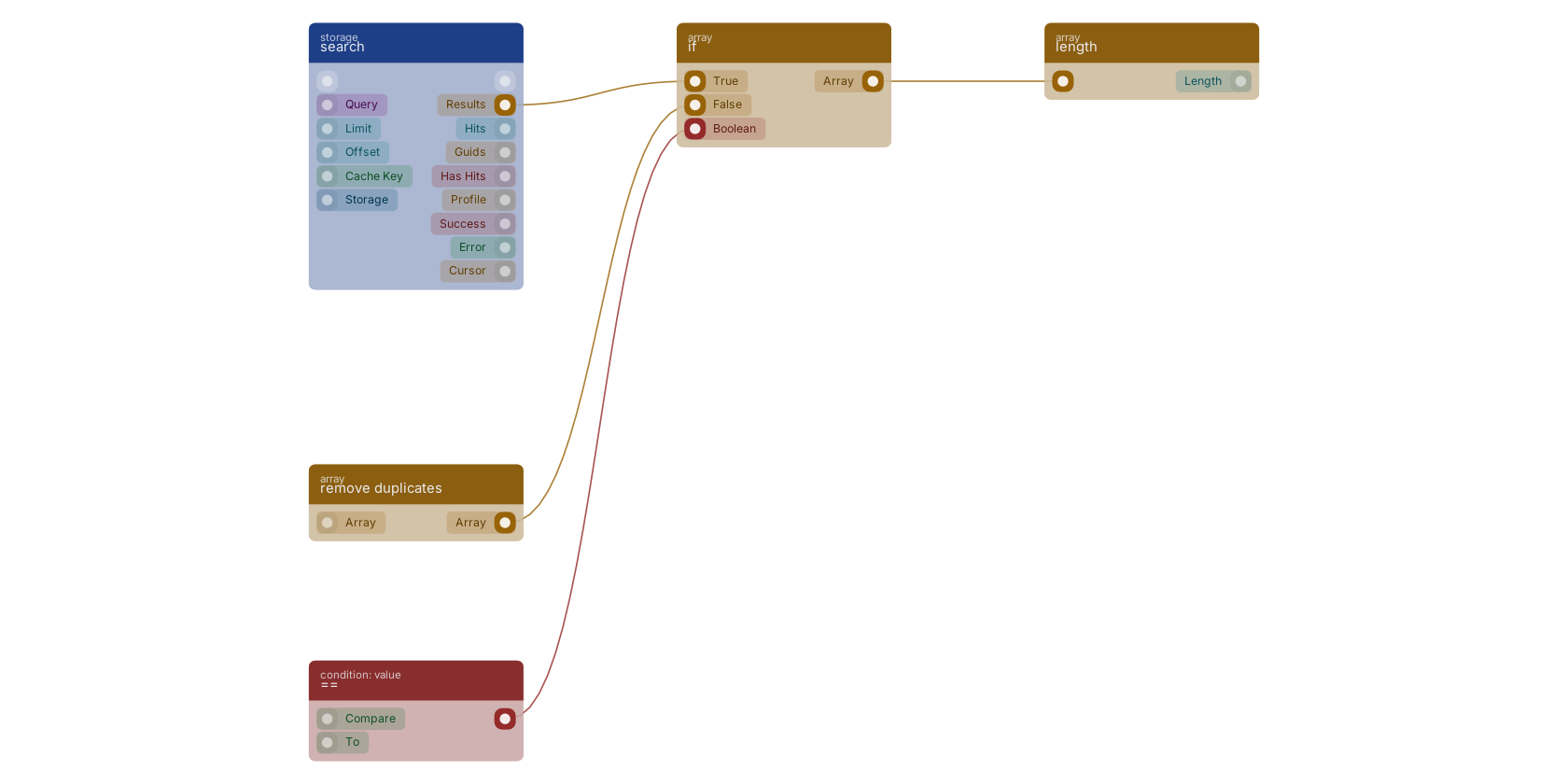

A typical wiring for if: search feeds the then pin; remove duplicates feeds the else pin; == feeds the condition pin; the array out pin feeds length.
Commonly used with
In production blueprints, this block is most often wired together with:
- search: feeds into this block. searches in the given storage based on a query.
- remove duplicates: feeds into this block. Removes duplicate values from an array.
- ==: feeds into this block. returns true if the two values are equal.
- set fields: this block feeds into it. Generates an array of mutations based on the given filled fields.
- new object: this block feeds into it. Builds a new object filled with the given fields.
- select field values: feeds into this block. returns an array with values of the given field in this array of objects.
Version history
Introduced in v10.4.28.
