if
This block is part of the object group and was last modified in core v10.4.28.
if v10.4.28 In pins 3
- true required
object - false required
object - boolean required
condition
Out pins 1
- object
object
Data selector: outputs the then input when the condition resolves exactly boolean true, otherwise the else input; a nil chosen input becomes {}. Only the chosen side's pure-data producer chain is evaluated -- the losing side is never resolved. Does not gate flow; it picks between two already-wired object values.

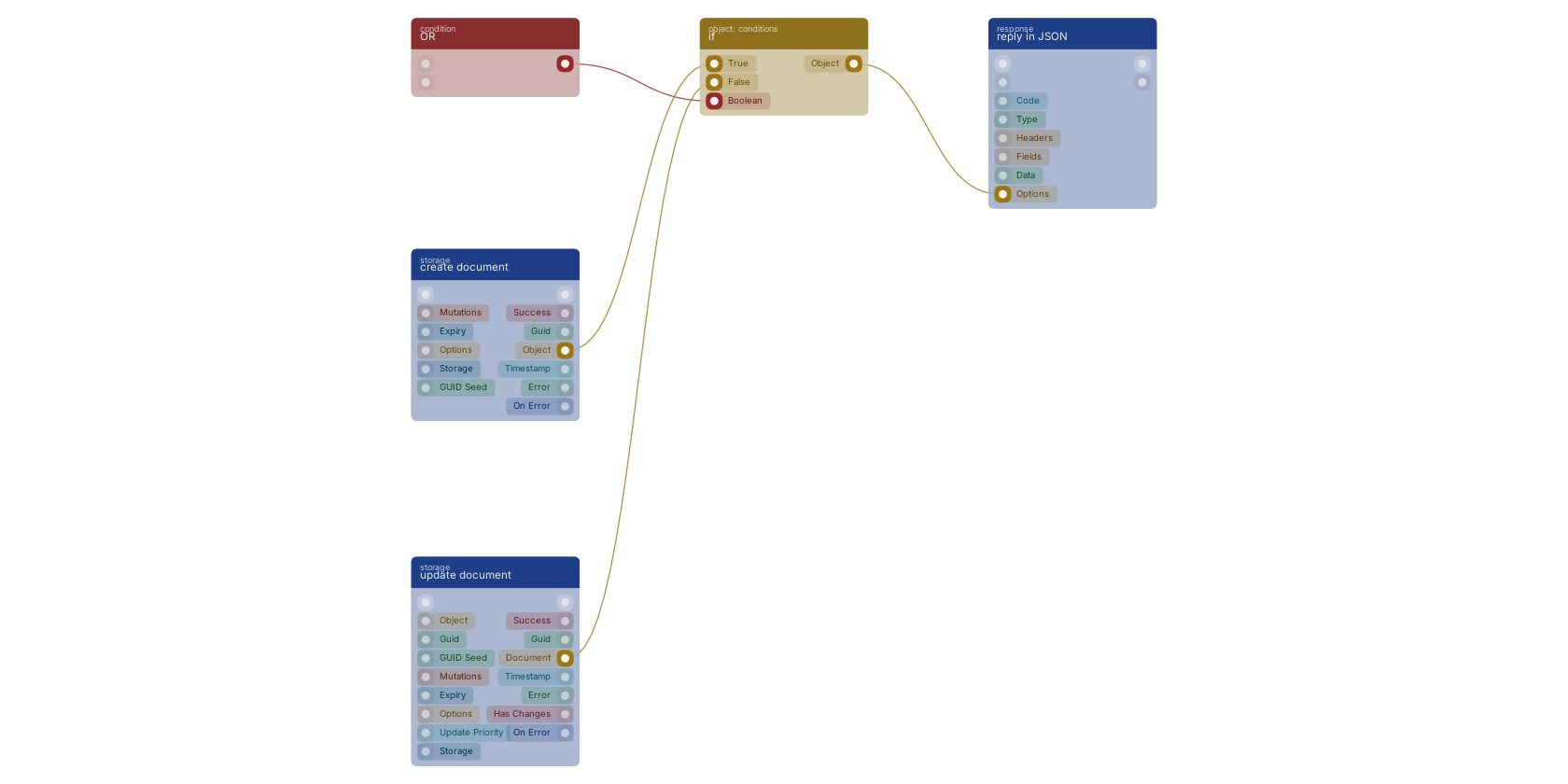

A typical wiring for if: OR feeds the condition pin; create document feeds the then pin; update document feeds the else pin; the object out pin feeds reply in JSON.
Commonly used with
In production blueprints, this block is most often wired together with:
- OR: feeds into this block. operator for a set of operands is true if and only if one or more of its operands is true.
- create document: feeds into this block. Creates a document in the given storage.
- update document: feeds into this block. Update document in the given storage and creates a revision for it.
- merge objects: feeds into this block.
- AND: feeds into this block. operator for a set of boolean operands will be true if and only if all the operands are true.
- !== true: feeds into this block. checks whether its operands are not equal to true.
Version history
Introduced in v10.4.28.
