on api get
This block is part of the http connection group and was last modified in core v10.3.2.
on api get v10.3.2 Exposes GET URI on /api/
Out pins 1
- On Request
execute_function
register get |

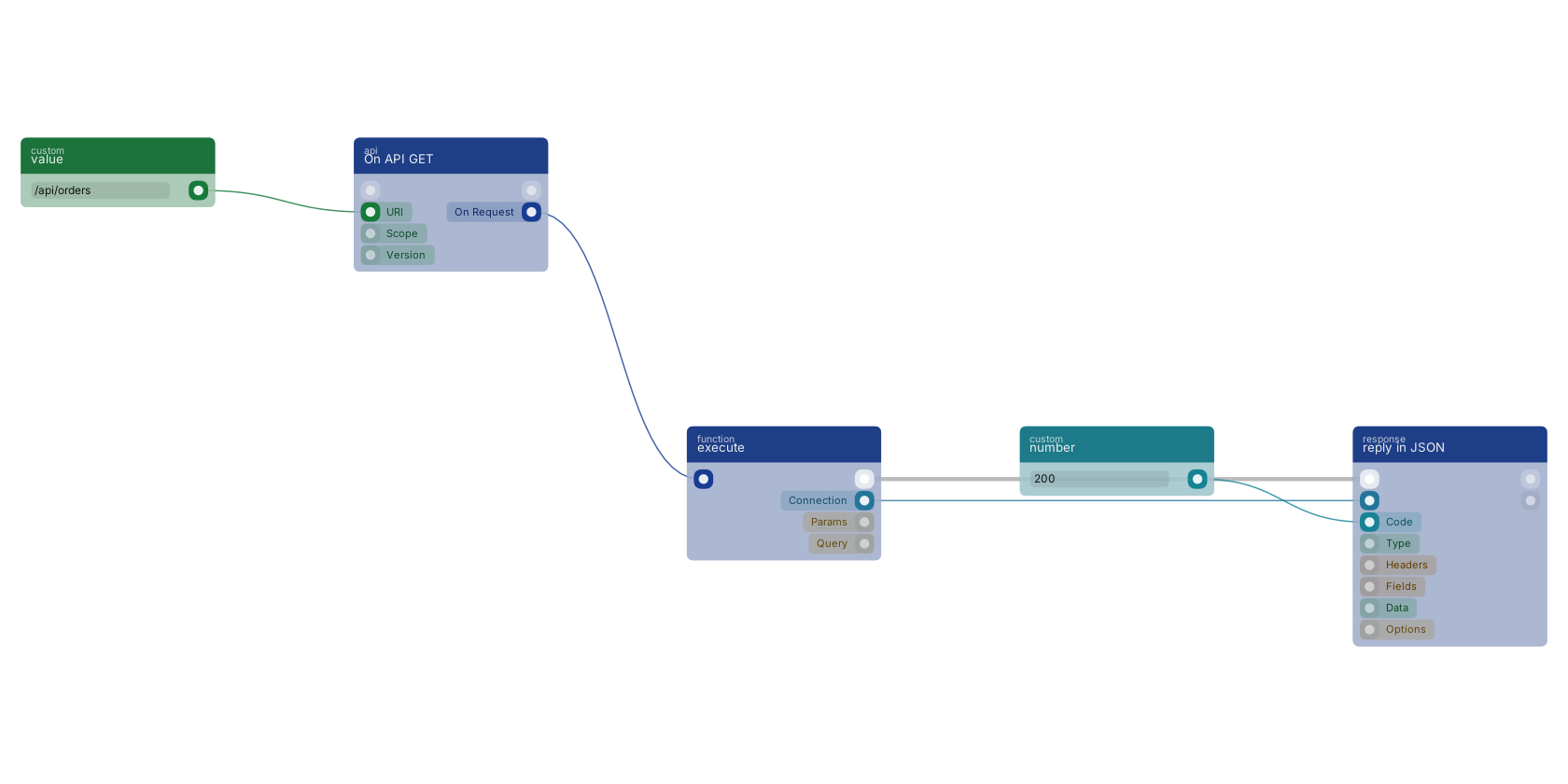

On API GET registers the uri at startup; the uri pin takes a fixed value. Wiring its function pin creates the execute handler block, whose flow runs the handler and whose connection pin feeds reply in JSON.
Commonly used with
In production blueprints, this block is most often wired together with:
- execute: this block feeds into it. Executes the given funcion and waits for it to be executed.
Used in these guides
These documentation pages use or explain this block:
- Creating a REST API
- Common Blueprint Patterns
- Block Templates, Combinations That Work
- Quickstart
- Block Quick Reference
- API Guide: Working with RUAL APIs
- Build Your First API
- Finding Blocks
Version history
Introduced in v10.3.2.
