reply with file
This block is part of the files group and was last modified in core v12.1.1.
reply with file v12.1.1 reply to http connection with a file
In pins 4 + flow
- flow
flow - connection required
httpconnection - code required
numberHTTP Status Code to return on this response.
- Headers
array<object>Custom HTTP Headers to set, Array of Objects [{ key: Value, value: Value }]
- file required
fileA blueprint file-type to be returned on this connection.
Out pins 1 + flow
- flow
flow - connection
httpconnection

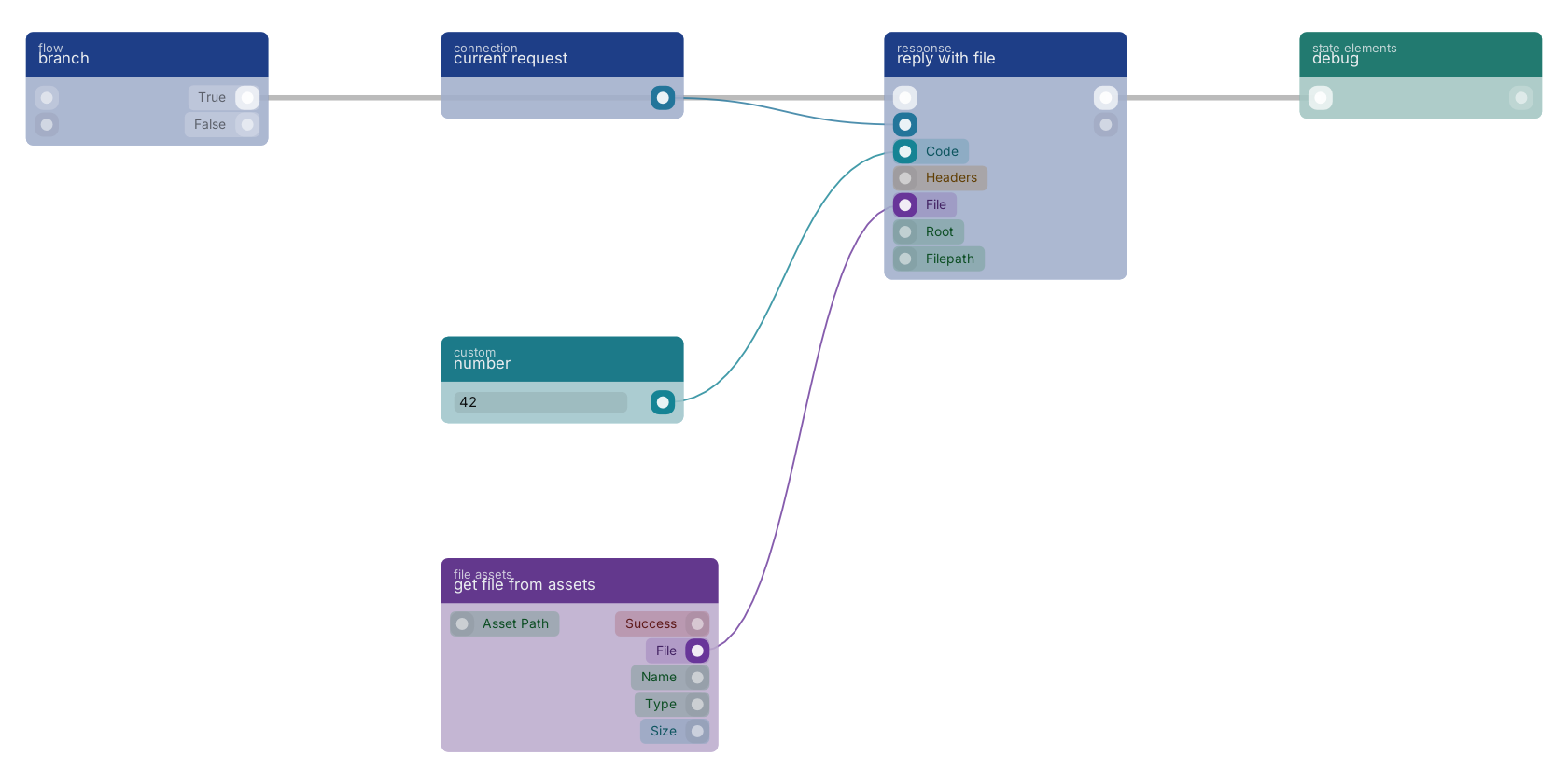

A typical wiring for reply with file: branch feeds the flow pin; current request feeds the connection pin; number feeds the code pin; get file from assets feeds the file pin; the flow out pin feeds debug.
Commonly used with
In production blueprints, this block is most often wired together with:
- branch: feeds into this block.
- current request: feeds into this block. Retrieves a reference to the current HTTP Connection.
- number: feeds into this block. Generates a valid number from the filled custom value in the blueprint.
- get fields: feeds into this block. Gets the selected fields from the given object.
Version history
Introduced in v12.1.1.
