zip

This block is part of the zip group and was last modified in core v14.0.2.

zip v14.0.2

zips the given files

In pins 1 + flow
  • flow
    flow
  • file required
    file

    The files to be zipped. The file names should not contain any special characters except . - or _

Out pins 3 + flow
  • flow
    flow
  • success
    condition
  • error
    value
  • file
    file

Packs every file from the file pin into one new ZIP in the entity temp folder, stored by basename only (directory paths are junked), and outputs a one-element file array describing the archive. An empty or unwired file pin is success=true with an empty file array : not an error. Fails with error INVALID_FILES (entry not an object or bad path), NON_EXISTING_FILES (a source missing on disk), FILE_PATH_NOT_CONFIGURED, COULD_NOT_CREATE_TEMP_FOLDER, or ERROR_DURING_ZIP; on those, file is nil.

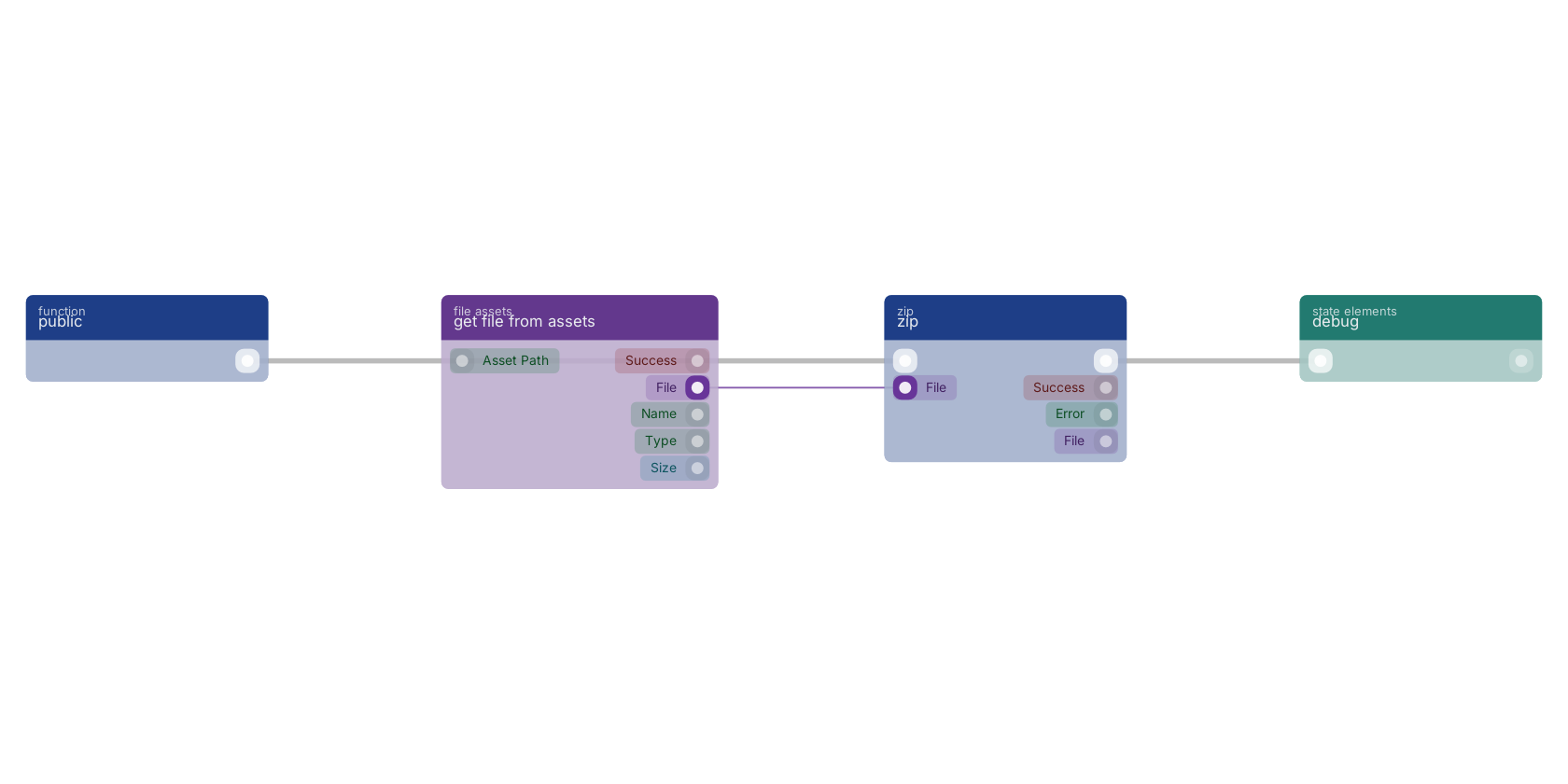

A typical wiring for zip: a function trigger starts the flow; get file from assets feeds the file pin; the flow out pin feeds debug.

Studio canvas example for the zip block: typical wiring for zip.

Version history

Introduced in v14.0.2.
