verify serials across the nameservers

This block is part of the dns group and was last modified in core v15.0.0.

verify serials across the nameservers v15.0.0

Ask every nameserver which serial it is actually serving, and whether they agree.

In pins 3 + flow
  • flow
    flow
  • Zone required
    value

    The zone name, for example deverence.nl.

  • Nameservers required
    array

    Each {name, host, port, user, key_path, known_hosts_path}. Paths only : never key material.

  • Expected serial
    number

    The serial this render produced. Set it to assert the push took, not just that the nodes agree.

Out pins 9 + flow
  • flow
    flow
  • Success
    condition

    True when every node could be asked.

  • Zone
    value

    The zone that was verified.

  • Agree
    condition

    True only when every node answered with the same serial.

  • Serial
    value

    The serial they agree on, when they do.

  • Matches expected
    condition

    True when the agreed serial is the one this render produced.

  • Results
    array

    Per node: name, host, serial, answered, output.

  • Answered count
    number

    How many nodes are serving the zone.

  • Node count
    number

    How many nodes were asked.

  • Error
    value

    What disagrees, or which nodes did not answer.

Runs dig SOA for this zone on every nameserver and reports the serial each one is actually serving. Health here is dig, not a status endpoint: serial disagreement is the only failure that matters and it is invisible from the store's own copy, because a push that succeeded on two nodes and silently did nothing on the third looks identical from there. The query runs ON the node against 127.0.0.1, which is a fact about the network rather than a preference: a host cannot reach its own VM's public address (macvlan hairpin), and asking a resolver would answer from a cache. agree is true only when every node answered AND they all gave the same serial. Agreement is checked between the nodes, not against a number computed here : a locally derived serial could be wrong the same way twice. Pass expect_serial (the render's serial) to also assert the push actually took; matches_expected then reports whether the agreed serial is the one just rendered. Each node is {name, host, port, user, key_path, known_hosts_path}: paths only, never key material.

dig soa
serial agreement
verify zone

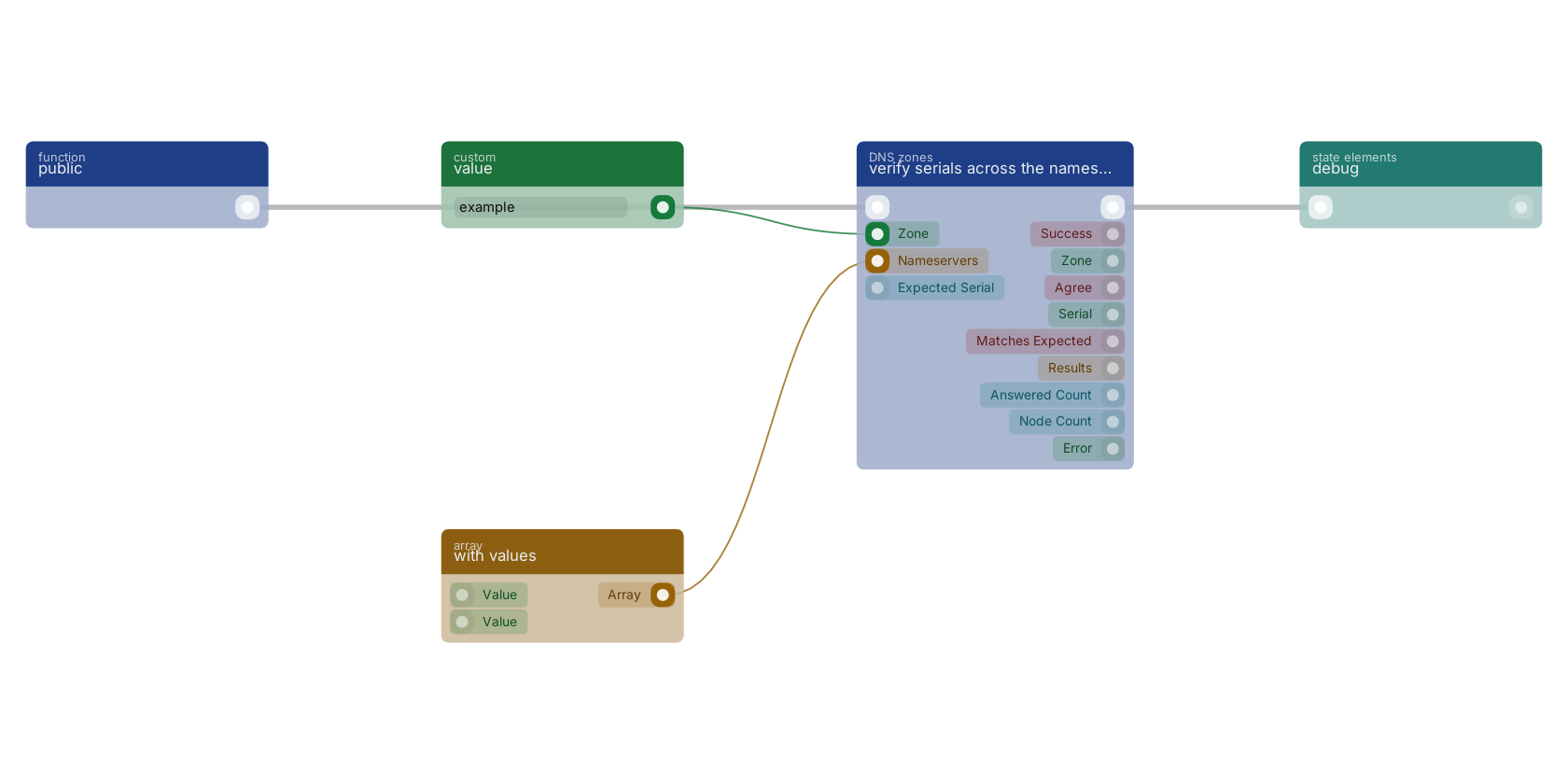

A typical wiring for verify serials across the nameservers: a function trigger starts the flow; value feeds the zone pin; with values feeds the nodes pin; the flow out pin feeds debug.

Studio canvas example for the verify serials across the nameservers block: typical wiring for verify serials across the nameservers.

Used in these guides

These documentation pages use or explain this block:

Version history

Introduced in v15.0.0.
