div

This block is part of the state ui group and was last modified in core v13.0.6.

div v13.0.1 Updated v13.0.6

Creates a dynamic and customizable div element on your web page.

In pins 5
  • content required
    state

    Integrates content or data from other elements.

  • class
    uiclass

    Assigns a CSS class to the element. • Hidden when unused

  • style
    uistyle

    Applies inline CSS style to the element • Hidden when unused

  • attributes
    uiattributes

    Adds custom attributes to the element. • Hidden when unused

  • events v14.0.1
    stateevents

    Adds event support to the element • Hidden when unused

Out pins 1
  • state
    state

    Returns the element to the frontend state.

div

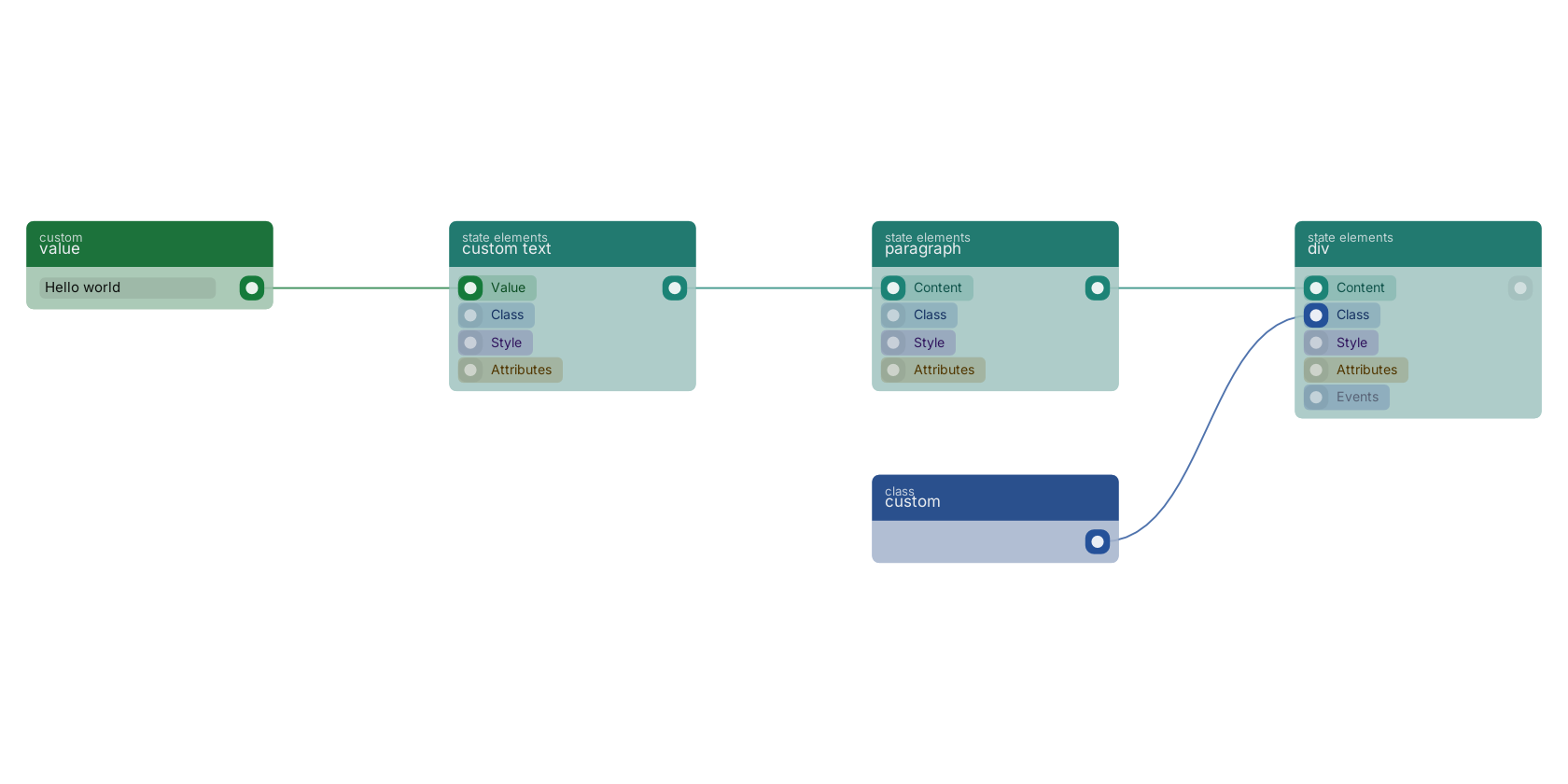

div is the basic layout element: its content pin takes other elements, here a paragraph holding a custom text, and the class pin takes a custom class. Elements nest by wiring state pins, which is how the page tree is built.

Studio canvas example for the div block: a div with content and a class.

Commonly used with

In production blueprints, this block is most often wired together with:

  • div: wired in both directions with this block. Creates a dynamic and customizable div element on your web page.
  • custom: feeds into this block. Custom class input.
  • paragraph: feeds into this block. A paragraph element.
  • hyperlink: feeds into this block. A anchor element, that can be used to create an link to an intern/extern page.
  • h3: feeds into this block. A H3 element.
  • new modal: feeds into this block. Builds a custom modal.

Version history

Introduced in v13.0.1.

Last modified in v13.0.6.

v14.0.1 This block or one of its pins was updated in v14.0.1, click here to see the release notes.
