form rows from fields
This block is part of the state ui group and was last modified in core v13.0.6.
Fields Selection Required
This block relies on fields that you selected to perform its data actions. You must manually select the fields you want to use in your flow using the fields selector modal. To access the modal, click the white button on the block.
Field Selection Required
This block requires field selection (in). You must manually select the fields you want to work with using the field selector modal. To access the modal, click the white button on the block.
form rows from fields v13.0.1 Updated v13.0.6Generates rows with the given fields. The fields will be used as state keys.
- form id required
valueA unique ID for the form this field is used in.
- show label at top
conditionSet this to
trueto modify the label styling in form-fields. • Hidden when other fields are filled - hide labels
condition - required fields
v13.0.8fielddefinitionsThis will add * to the labels if set to true. It will not actually validate if the fields are filled or not but just provide a visual help to the end-user if something is required or not.
- disabled
conditionSet this to
trueto disable all generated inputs. Custom inputs can overwrite this behaviour. - field render
stateformfieldconnection - class
uiclassAssigns a CSS class to the element. • Hidden when unused
- style
uistyleApplies inline CSS style to the element • Hidden when unused
- attributes
uiattributesAdds custom attributes to the element. • Hidden when unused
- state
stateReturns the element to the frontend state.
form with fields |

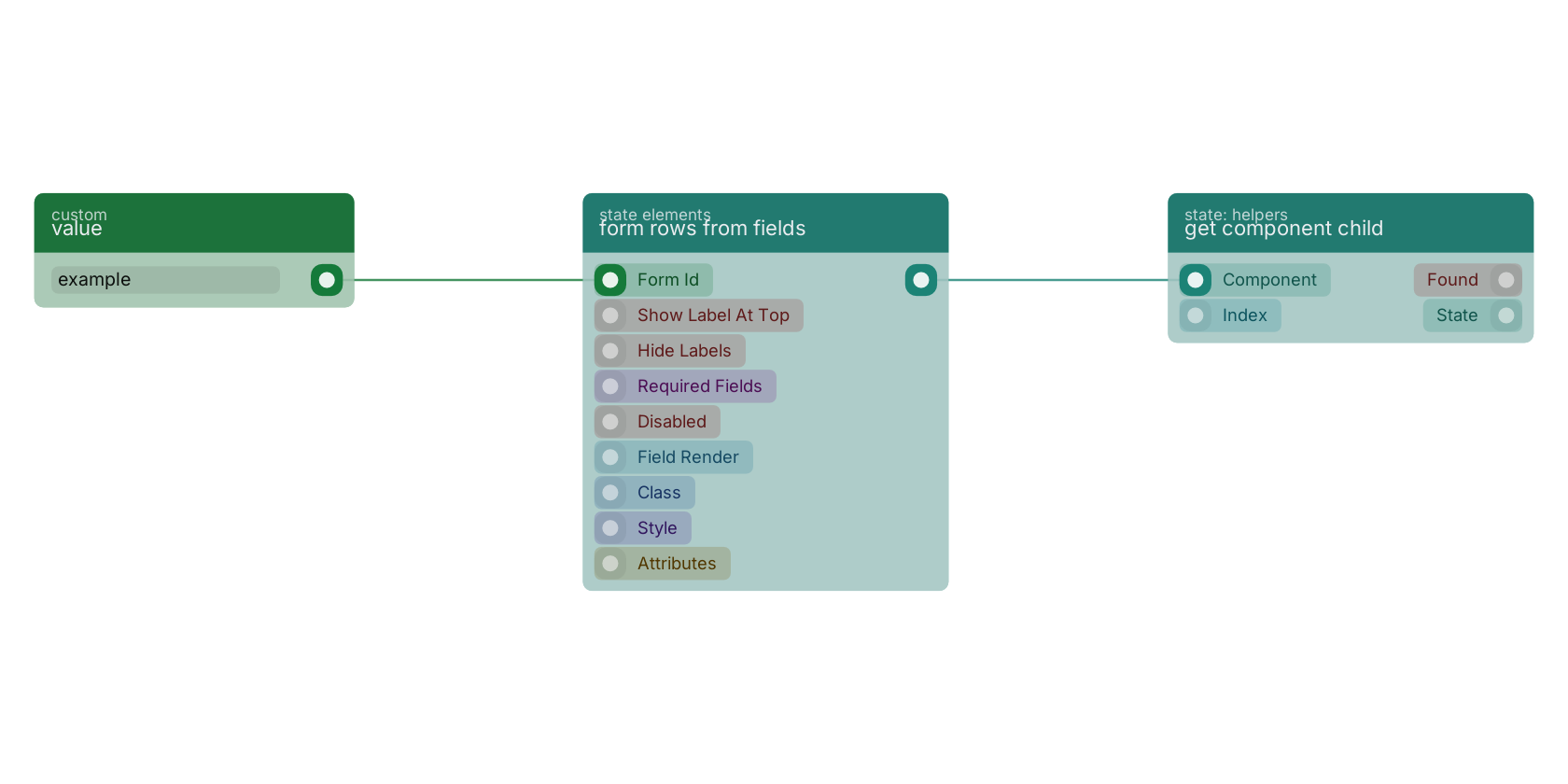

A typical wiring for form rows from fields: value feeds the form_id pin; the state out pin feeds get component child.
Version history
Introduced in v13.0.1.
Last modified in v13.0.6.
